• Self-Retaining Single Thread Tuning Type Nuts
  • Self-Retaining Single Thread Tuning Type Nuts - 2

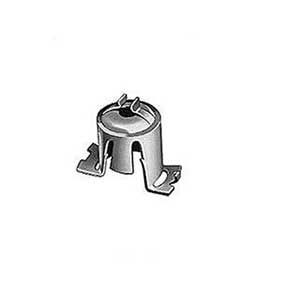

Tuning Type Nuts are multi-functional, vibration-proof fasteners that are easily snapped in place without special skills or tools. Spring steel fingers of the clip snap past the panel as inserted holding the coil forms firmly in place on the chassis. Special tension fingers bear against the adjusting screw to assure vibration-resistant fine tuning adjustment and trouble-free service.
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Panel Thickness

Material Thickness (Decimal)

Length

N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.034 to 0.062 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.034 to 0.062 in N/A 0.011 in N/A 0.620 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.034 to 0.062 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.034 to 0.062 in N/A 0.011 in N/A 0.620 in
N/A 0.086 to 0.109 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.086 to 0.109 in N/A 0.014 in N/A 0.620 in
N/A 0.015 to 0.039 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.015 to 0.039 in N/A 0.011 in N/A 0.590 in
N/A 0.015 to 0.039 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.015 to 0.039 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.060 to 0.085 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.060 to 0.085 in N/A 0.011 in N/A 0.590 in
N/A 0.034 to 0.062 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.034 to 0.062 in N/A 0.011 in N/A 0.620 in
N/A 0.015 to 0.039 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.015 to 0.039 in N/A 0.011 in N/A 0.590 in
N/A 0.025 to 0.050 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.025 to 0.050 in N/A 0.011 in N/A 0.620 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.590 in
N/A 0.060 to 0.085 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.060 to 0.085 in N/A 0.011 in N/A 0.620 in
N/A 0.086 to 0.109 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.086 to 0.109 in N/A 0.011 in N/A 0.600 in
N/A 0.030 to 0.055 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.030 to 0.055 in N/A 0.011 in N/A 0.630 in
N/A 0.040 to 0.065 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.040 to 0.065 in N/A 0.011 in N/A 0.630 in
N/A 0.054 to 0.070 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.054 to 0.070 in N/A 0.011 in N/A 0.660 in
N/A 0.086 to 0.109 Inch (in) Panel Thickness Self-Retaining Single Thread Tuning Type Nut N/A 0.086 to 0.109 in N/A 0.011 in N/A 0.620 in
