Tuning Type Nuts are multi-functional, vibration-proof fasteners that are easily snapped in place without special skills or tools. Spring steel fingers of the clip snap past the panel as inserted holding the coil forms firmly in place on the chassis. Special tension fingers bear against the adjusting screw to assure vibration-resistant fine tuning adjustment and trouble-free service.
Unit of Measure
Specifications
Panel Thickness |
N/A 0.054 to 0.070 in |
Material Thickness (Decimal) |
N/A 0.011 in |
Width |
N/A 0.25 in |
Height |
N/A 0.22 in |
Length |
N/A 0.660 in |

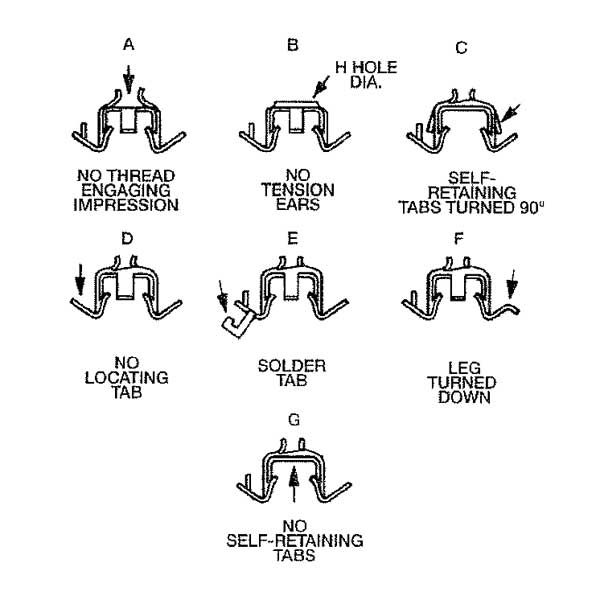

Design Variation |
N/A BD |
Barb Height |
N/A 0.030 in |
Coil Form Diameter |
N/A 0.297 in |
Hole Diameter G |
N/A 0.330 in |
Hole Diameter H |
N/A 0.160 in |
Material |
N/A Heat-Treated Spring Steel |
