• Constant Tension FBS R Style Band Clamps
  • Constant Tension FBS R Style Band Clamps - 2
Constant Tension Bands are the ideal fasteners for hose-spigot connections which are submitted to extreme temperature changes, or which tend to "slip away" under pressure of the clamp. This version is a space-saving clamp designed to realize the technical minimum overall height to allow its use in difficult assembly situations. These spring band clamps are quick to assemble and easy to install. Their integrated spring retaining mechanism provides a continuously readjusting dynamic tightening effect. They are available in 12mm band width and will accommodate nominal diameters from 13 up to 80 mm.
1 - 25 of 39 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

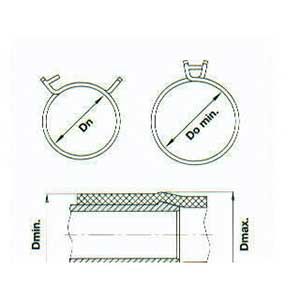

Expanded Diameter

Hose Outside Diameter

N/A 0.512 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.571 in14.50 mm N/A 0.512 in13.00 mm
N/A 0.551 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.622 in15.30 mm N/A 0.551 in14.00 mm
N/A 0.591 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.661 in16.80 mm N/A 0.591 in15.00 mm
N/A 0.630 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.689 in17.50 mm N/A 0.630 in16.00 mm
N/A 0.669 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.728 in18.50 mm N/A 0.669 in17.00 mm
N/A 0.709 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.748 in19.00 mm N/A 0.709 in18.00 mm
N/A 0.748 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.827 in21.00 mm N/A 0.748 in19.00 mm
N/A 0.787 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.850 in21.60 mm N/A 0.787 in20.00 mm
N/A 0.827 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.886 in22.50 mm N/A 0.827 in21.00 mm
N/A 0.866 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.965 in24.50 mm N/A 0.866 in22.00 mm
N/A 0.906 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 0.972 in24.70 mm N/A 0.906 in23.00 mm
N/A 0.945 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.024 in26.00 mm N/A 0.945 in24.00 mm
N/A 0.984 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.063 in27.00 mm N/A 0.984 in25.00 mm
N/A 1.024 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.102 in28.00 mm N/A 1.024 in26.00 mm
N/A 1.063 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.142 in29.00 mm N/A 1.063 in27.00 mm
N/A 1.102 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.201 in30.50 mm N/A 1.102 in28.00 mm
N/A 1.142 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.240 in31.50 mm N/A 1.142 in29.00 mm
N/A 1.181 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.280 in32.50 mm N/A 1.181 in30.00 mm
N/A 1.260 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.358 in34.50 mm N/A 1.260 in32.00 mm
N/A 1.378 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.496 in38.00 mm N/A 1.378 in35.00 mm
N/A 1.417 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.535 in39.00 mm N/A 1.417 in36.00 mm
N/A 1.457 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A N/A 1.457 in37.00 mm
N/A 1.496 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.634 in41.50 mm N/A 1.496 in38.00 mm
N/A 1.575 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A 1.673 in42.50 mm N/A 1.575 in40.00 mm
N/A 1.614 Inch (in) Hose Outside Diameter Constant Tension FBS R Style Band Clamp N/A N/A 1.614 in41.00 mm
1 - 25 of 39 | Results Per Page | View | Unit of Measure
1 2
