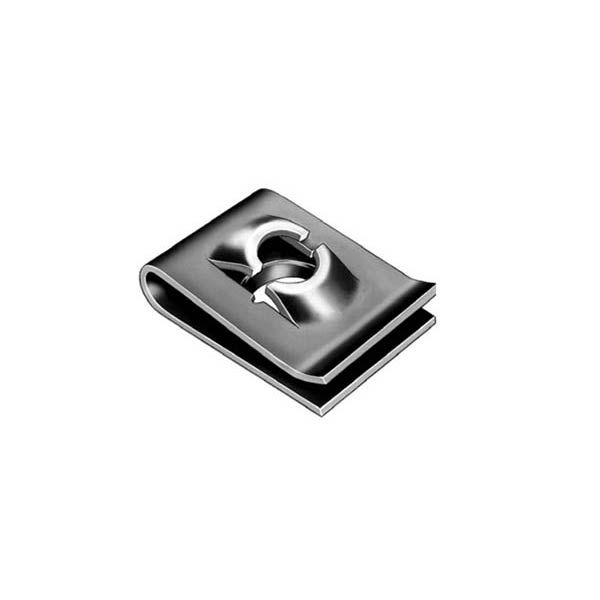

• Single Thread U-Nuts for Size 10-32 Machine Screws
Single Thread U-Nuts are used where a full bearing surface on the lower leg is desired. During assembly, these high-performance U-shaped nuts are placed over the edge of a stamped panel, or through a pre-stamped slot. They are then simply pushed until the rear of the fastener locates against the plastic or metal panel edge or snaps into the clearance hole. U-Nuts are self-retained in screw-receiving position to provide simple, rapid attachment of mating panels. They cannot turn as the screw is driven.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Overall Length

Panel Size

Material Thickness (Decimal)

N/A 0.020 to 0.051 Inch (in) Panel Size Single Thread U-Nut N/A 0.7 in N/A 0.020 to 0.051 in N/A 0.031 in
N/A 0.025 to 0.062 Inch (in) Panel Size Single Thread U-Nut N/A 0.66 in N/A 0.025 to 0.062 in N/A 0.017 in
N/A 0.025 to 0.064 Inch (in) Panel Size Single Thread U-Nut N/A 0.840 in N/A 0.025 to 0.064 in N/A 0.017 in
N/A 0.025 to 0.064 Inch (in) Panel Size Single Thread U-Nut N/A 0.840 in N/A 0.025 to 0.064 in N/A 0.017 in
N/A 0.045 to 0.062 Inch (in) Panel Size Single Thread U-Nut N/A 0.57 in N/A 0.045 to 0.062 in N/A 0.017 in
N/A 0.045 to 0.070 Inch (in) Panel Size Single Thread U-Nut N/A 0.760 in N/A 0.045 to 0.070 in N/A 0.022 in
N/A 0.055 to 0.065 Inch (in) Panel Size Single Thread U-Nut N/A 0.440 in N/A 0.055 to 0.065 in N/A 0.020 in
N/A 0.060 to 0.070 Inch (in) Panel Size Single Thread U-Nut N/A 0.500 in N/A 0.060 to 0.070 in N/A 0.017 in
N/A 0.062 to 0.094 Inch (in) Panel Size Single Thread U-Nut N/A 1.21 in N/A 0.062 to 0.094 in N/A 0.017 in
N/A 0.081 to 0.100 Inch (in) Panel Size Single Thread U-Nut N/A 0.61 in N/A 0.081 to 0.100 in N/A 0.017 in
