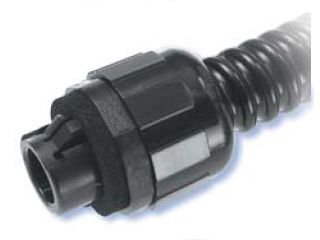

• Straight Snap-In Nylon 6/6 Liquid Tight Fittings with Domed Nuts
These Straight Snap-In Nylon (6/6) Liquid Tight Fittings with Domed Nuts are assembly friendly! The installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be "snapped" into the chassis with fingertip pressure. They are available in five sizes, 1/4" thru 1" for use with Flexible Conduit and Tubing listed in the "Liquid Tight Flexible Conduit/Tubing" section of our Electrical catalog.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Mounting Hole Diameter

Wrench Flats

Nut Thickness

N/A 0.875 Inch (in) Mounting Hole Diameter Straight Snap-In Nylon 6/6 Liquid Tight Fitting with Domed Nuts N/A 0.875 in22.20 mm N/A 1.328 in33.70 mm N/A 0.250 in6.3 mm
N/A 0.500 Inch (in) Mounting Hole Diameter Straight Snap-In Nylon 6/6 Liquid Tight Fitting with Domed Nuts N/A 0.500 in12.70 mm N/A 0.875 in22.20 mm N/A 0.219 in5.60 mm
N/A 0.875 Inch (in) Mounting Hole Diameter Straight Snap-In Nylon 6/6 Liquid Tight Fitting with Domed Nuts N/A 0.875 in22.20 mm N/A 1.328 in33.70 mm N/A 0.250 in6.3 mm
N/A 1.090 Inch (in) Mounting Hole Diameter Straight Snap-In Nylon 6/6 Liquid Tight Fitting with Domed Nuts N/A 1.090 in27.70 mm N/A 1.562 in39.70 mm N/A 0.250 in6.3 mm
N/A 1.375 Inch (in) Mounting Hole Diameter Straight Snap-In Nylon 6/6 Liquid Tight Fitting with Domed Nuts N/A 1.375 in34.90 mm N/A 1.812 in46.00 mm N/A 0.250 in6.3 mm
