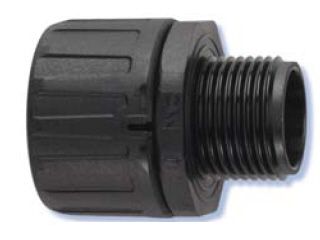

Straight Nylon (PA66) National Pipe Thread (NPT) Fittings
Swing Couplings and Fittings
Straight Nylon (PA66) NPT Fittings are for use with 16mm thru 67mm Corrugated Nylon Polyamide 6 and Corrugated Nylon Polyamide 12 Liquid-Tight Conduit Tubing. These all-Nylon, Low Fire Hazard fittings are available in 7 NPT threaded choices for use with 7 different conduit sizes.
Item # |
Item Name |
Mounting Hole Size |
Maximum Overall Depth |
Maximum Overall Length |
---|---|---|---|---|
20300577-A030 | N/A 1.457 Inch (in) Maximum Overall Length Straight Nylon (PA66) National Pipe Thread (NPT) Fitting | Mounting Hole Size N/A 0.670 in17.00 mm | Maximum Overall Depth N/A 1.122 in28.50 mm | Maximum Overall Length N/A 1.457 in37.00 mm |
20300578-A030 | N/A 1.555 Inch (in) Maximum Overall Length Straight Nylon (PA66) National Pipe Thread (NPT) Fitting | Mounting Hole Size N/A 0.875 in22.20 mm | Maximum Overall Depth N/A 1.122 in28.50 mm | Maximum Overall Length N/A 1.555 in39.50 mm |
20300579-A030 | N/A 1.732 Inch (in) Maximum Overall Length Straight Nylon (PA66) National Pipe Thread (NPT) Fitting | Mounting Hole Size N/A 0.875 in22.20 mm | Maximum Overall Depth N/A 1.260 in32.00 mm | Maximum Overall Length N/A 1.732 in44.00 mm |
20300580-A030 | N/A 1.969 Inch (in) Maximum Overall Length Straight Nylon (PA66) National Pipe Thread (NPT) Fitting | Mounting Hole Size N/A 1.109 in28.20 mm | Maximum Overall Depth N/A 1.732 in44.00 mm | Maximum Overall Length N/A 1.969 in50.00 mm |
20300581-A030 | N/A 2.087 Inch (in) Maximum Overall Length Straight Nylon (PA66) National Pipe Thread (NPT) Fitting | Mounting Hole Size N/A 1.375 in34.90 mm | Maximum Overall Depth N/A 1.988 in50.50 mm | Maximum Overall Length N/A 2.087 in53.00 mm |
