Aero-Seal® Hose Clamps
Slotted Worm Gear Clamps

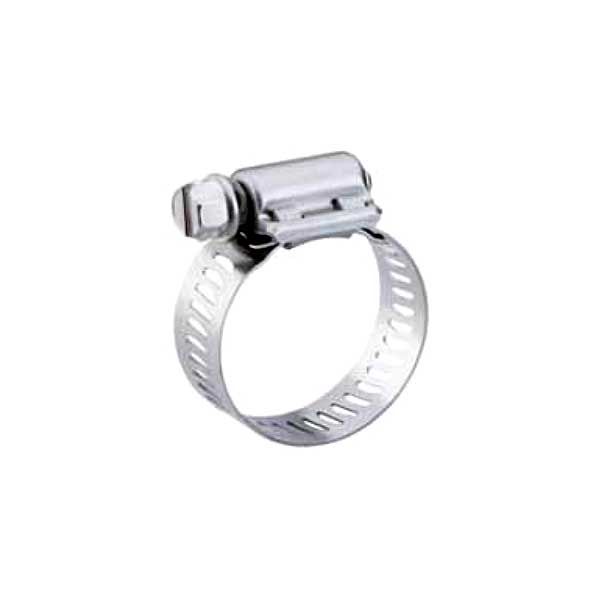

Aero-Seal® Hose Clamps are the original stainless steel worm gear clamps. The 4-piece, heavy duty Quadra-Lock design allows more tightening torque at band perforations. A wider 9/16" band adds greater strength. Aero-Seal clamps are Marine grade 301SS and are also used in aircraft and heavy duty industrial applications.
1 2
Item # |
Item Name |
Maximum Clamp Size |
Minimum Clamp Size |
Band Width (Decimal) |
|---|---|---|---|---|
| 15B000053-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 0.781 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 0.781 in20 mm | Minimum Clamp Size N/A 11.00 mm0.437 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000053-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 0.781 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 0.781 in20 mm | Minimum Clamp Size N/A 11.00 mm0.437 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000054-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 0.906 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 0.906 in23.00 mm | Minimum Clamp Size N/A 13.00 mm0.500 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000054-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 0.906 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 0.906 in23.00 mm | Minimum Clamp Size N/A 13.00 mm0.500 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000055-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.063 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.063 in27 mm | Minimum Clamp Size N/A 14.00 mm0.562 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000055-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.063 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.063 in27 mm | Minimum Clamp Size N/A 14.00 mm0.562 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000056-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.250 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.250 in32 mm | Minimum Clamp Size N/A 17.00 mm0.687 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000056-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.250 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.250 in32 mm | Minimum Clamp Size N/A 17.00 mm0.687 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000057-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.500 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.500 in38.00 mm | Minimum Clamp Size N/A 21.00 mm0.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000057-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.750 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.750 in38.00 mm | Minimum Clamp Size N/A 21.00 mm0.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000058-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.500 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.500 in44.00 mm | Minimum Clamp Size N/A 21.00 mm0.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000058-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.750 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.750 in44.00 mm | Minimum Clamp Size N/A 21.00 mm0.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000059-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.000 in51.00 mm | Minimum Clamp Size N/A 27.00 mm1.062 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000059-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 1.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 1.000 in51.00 mm | Minimum Clamp Size N/A 27.00 mm1.062 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000060-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.25 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.25 in57.00 mm | Minimum Clamp Size N/A 33.00 mm1.312 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000060-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.250 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.25 in57.00 mm | Minimum Clamp Size N/A 33.00 mm1.312 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000061-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.500 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.500 in64.00 mm | Minimum Clamp Size N/A 40 mm1.562 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000061-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.500 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.500 in64.00 mm | Minimum Clamp Size N/A 40 mm1.562 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000062-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.750 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.750 in70 mm | Minimum Clamp Size N/A 46.00 mm1.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000062-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 2.750 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 2.750 in70 mm | Minimum Clamp Size N/A 46.00 mm1.812 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000063-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 5.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 5.000 in127.00 mm | Minimum Clamp Size N/A 48.00 mm1.875 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000063-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 5.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 5.000 in127.00 mm | Minimum Clamp Size N/A 48.00 mm1.875 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000064-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 3.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 3.000 in76.00 mm | Minimum Clamp Size N/A 52.00 mm2.062 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000064-316M /Asset/15b1407_d.jpg | N/A Aero-Seal® 3.000 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 3.000 in76.00 mm | Minimum Clamp Size N/A 52.00 mm2.062 in | Band Width (Decimal) N/A 14.20 mm |
| 15B000065-3005M /Asset/15b1407_d.jpg | N/A Aero-Seal® 3.250 Inch (in) Maximum Size Hose Clamp | Maximum Clamp Size N/A 3.250 in83.00 mm | Minimum Clamp Size N/A 59.00 mm2.312 in | Band Width (Decimal) N/A 14.20 mm |
1 2
