PB Style Push-On Retainers
Shaft & Bolt Retainers

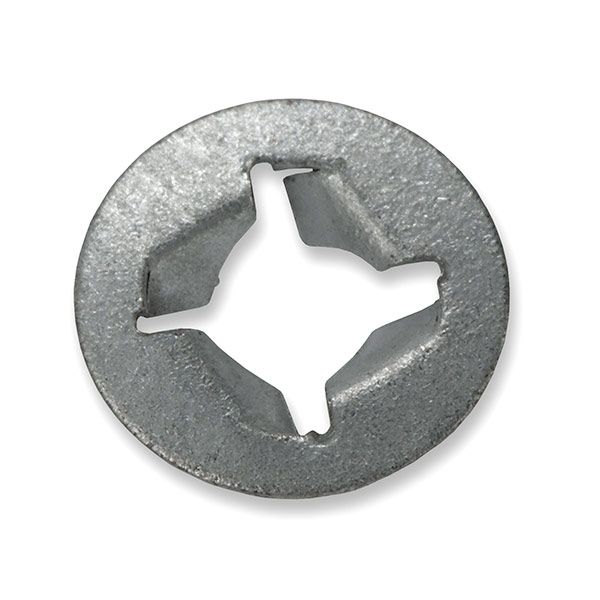

PB Style Push-ons are temporary stamped retainers that hold pre-inserted bolts in place until they reach final assembly. These bolt retainers may be used alone for load-carrying in light duty assemblies or may be used on top of ordinary nuts to assure tightness of high stress assemblies. They offer an impressive cost savings of alternative fasteners in their initial cost, assembly time, weight and space.
1 2
Item # |
Item Name |

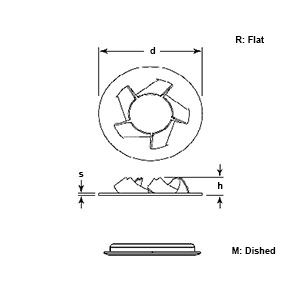

Material Thickness (Decimal) |
Outside Diameter |
Height |
---|---|---|---|---|
11C609006-00Q /Asset/01789_a_4.jpg | N/A PB Style 1/4 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.5 in | Height N/A 0.086 in |
70011208 /Asset/01789_a_4.jpg | N/A PB Style 1/4 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.5 in | Height N/A 0.086 in |
11C609006-01Q /Asset/01789_a_4.jpg | N/A PB Style 1/4 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.01 in | Outside Diameter N/A 0.5 in | Height N/A 0.086 in |
11C609005-00Q /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.625 in | Height N/A 0.082 in |
11C609005-03Q /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.625 in | Height N/A 0.082 in |
11C609005-01Q /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.625 in | Height N/A 0.082 in |
11C609005-04 /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.625 in | Height N/A 0.082 in |
11C609005-119 /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.013 in | Outside Diameter N/A 0.625 in | Height N/A 0.082 in |
11C100012-00Q /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.018 in | Outside Diameter N/A 0.625 in | Height N/A 0.084 in |
11C100012-01 /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.018 in | Outside Diameter N/A 0.625 in | Height N/A 0.084 in |
11C100012-111 /Asset/01789_a_4.jpg | N/A PB Style 5/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A 0.018 in | Outside Diameter N/A 0.625 in | Height N/A 0.084 in |
11C609006-03Q /Asset/01789_a_4.jpg | N/A PB Style 3/8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.780 in | Height N/A 0.093 in |
11P609006-01Q /Asset/01789_a_4.jpg | N/A PB Style 3/8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.780 in | Height N/A 0.093 in |
11C609006-04 /Asset/01789_a_4.jpg | N/A PB Style 3/8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.780 in | Height N/A 0.093 in |
11C609006-119 /Asset/01789_a_4.jpg | N/A PB Style 3/8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.780 in | Height N/A 0.093 in |
70008714-00 /Asset/01789_a_4.jpg | N/A PB Style 7/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.843 in | Height N/A 0.104 in |
70008714 /Asset/01789_a_4.jpg | N/A PB Style 7/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.843 in | Height N/A 0.104 in |
11P609010-00Q /Asset/01789_a_4.jpg | N/A PB Style 1/2 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.938 in | Height N/A 0.122 in |
70007543 /Asset/01789_a_4.jpg | N/A PB Style 1/2 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.938 in | Height N/A 0.122 in |
11P609010-01Q /Asset/01789_a_4.jpg | N/A PB Style 1/2 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.938 in | Height N/A 0.122 in |
11P609010-119 /Asset/01789_a_4.jpg | N/A PB Style 1/2 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.938 in | Height N/A 0.122 in |
11C100036-00Q /Asset/01789_a_4.jpg | N/A PB Style 9/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.979 in | Height N/A 0.128 in |
11C100095-00 /Asset/01789_a_4.jpg | N/A PB Style 9/16 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 0.984 in | Height N/A 0.150 in |
11P609002-00Q /Asset/01789_a_4.jpg | N/A PB Style 8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 3/8 in | Height N/A 0.049 in |
11P609002-01Q /Asset/01789_a_4.jpg | N/A PB Style 8 Inch (in) Stud Size Push-On Retainer | Material Thickness (Decimal) N/A .015 in | Outside Diameter N/A 3/8 in | Height N/A 0.049 in |
