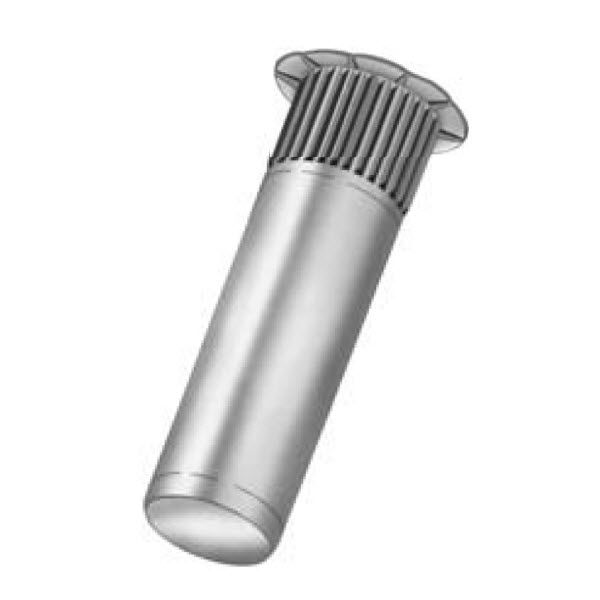

• Closed End Insert Nuts
Closed End Insertnuts eliminate leakage past the threads from either side of the application.
  • Wedged Head for greater torque capabilities, especially in soft or thin materials & electrical grounding applications.
  • Low Profile
  • Large Diameter Head
  • Knurled Body for use in punched or drilled holes. During insertion, the knurled body expands 360° to fill the hole, providing torque strength and vibration resistance. A flange forms on the backside, without any need for adjustments, even in multiple thicknesses of materials.
1 - 25 of 31 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Thread Size

Head Outside Diameter

Hole Diameter

N/A 0.02 to 0.08 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 6-32 N/A 0.39 in N/A 0.265 in
N/A 0.08 to 0.13 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 6-32 N/A 0.39 in N/A 0.265 in
N/A 0.02 to 0.08 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 8-32 N/A 0.39 in N/A 0.265 in
N/A 0.02 to 0.08 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 8-32 N/A 0.39 in N/A 0.265 in
N/A 0.08 to 0.13 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 8-32 N/A 0.39 in N/A 0.265 in
N/A 0.02 to 0.13 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 10-24 N/A 0.415 in N/A 0.296 in
N/A 0.13 to 0.225 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 10-24 N/A 0.415 in N/A 0.296 in
N/A 0.02 to 0.13 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 10-32 N/A 0.415 in N/A 0.296 in
N/A 0.13 to 0.225 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 10-32 N/A 0.415 in N/A 0.296 in
N/A 0.027 to 0.165 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 1/4-20 N/A 0.5 in N/A 0.39 in
N/A 0.165 to 0.26 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 1/4-20 N/A 0.5 in N/A 0.39 in
N/A 0.027 to 0.15 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 5/16-18 N/A 0.685 in N/A 0.531 in
N/A 0.15 to 0.312 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 5/16-18 N/A 0.686 in N/A 0.531 in
N/A 60.027 to 0.15 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 3/8-16 N/A 0.687 in N/A 0.531 in
N/A 0.15 to 0.312 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 3/8-16 N/A 0.688 in N/A 0.531 in
N/A 0.063 to 0.2 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 1/2-13 N/A 0.865 in N/A 0.687 in
N/A 0.2 to 0.35 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 1/2-13 N/A 0.865 in N/A 0.687 in
N/A 0.28 to 0.4 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A 1/2-13 N/A 0.865 in N/A 0.687 in
N/A 0.5 to 2 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M4x0.7 N/A 9.91 mm N/A 6.75 mm
N/A 2 to 3.3 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M4x0.7 N/A 9.91 mm N/A 6.75 mm
N/A 0.5 to 3.3 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M5x0.8 N/A 10.54 mm N/A 7.6 mm
N/A 3.3 to 5.7 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M5x0.8 N/A 10.54 mm N/A 7.6 mm
N/A 7 to 4.2 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M6 x 1 N/A 12.7 mm N/A 10 mm
N/A 2 to 6.6 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M6 x 1 N/A 12.7 mm N/A 10 mm
N/A 0.7 to 3.8 Inch (in) Grip Closed End Insert Nut Low-Profile Knurled with Wedged Head N/A M8 x 1.25 N/A 17.4 mm N/A 13.5 mm
