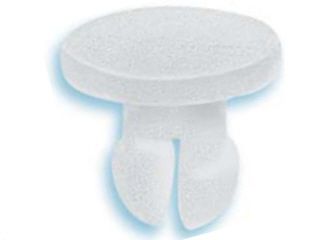

Nylon Dart Clips with Slotted Legs
Plastic Dart Type Panel Clips
These Nylon Dart Clips with Slotted Legs provide a low cost way to assemble metal, plastic, composite, wood and other thin gauge materials. They are open at the end, and their legs are shaped to "lock" at the end for security. They easily compress as they are snapped into the mounting hole, and then expand back to their original shape, firmly securing assembled components. These clips are reusable, and are available in 5 sizes.
Item # |
Item Name |
Head Diameter |
Mounting Hole Diameter |
Maximum Panel Size |
---|---|---|---|---|
20300227-A020 /Asset/201235-a.jpg | N/A 0.203 Inch (in) Head Diameter Nylon Dart Clip with Slotted Leg | Head Diameter N/A 0.203 in5.20 mm | Mounting Hole Diameter N/A 0.130 in3.30 mm | Maximum Panel Size N/A 0.190 in4.80 mm |
20300228-A020 /Asset/201235-a.jpg | N/A 0.343 Inch (in) Head Diameter Nylon Dart Clip with Slotted Leg | Head Diameter N/A 0.343 in8.70 mm | Mounting Hole Diameter N/A 0.200 in5.10 mm | Maximum Panel Size N/A 0.375 in9.50 mm |
20823003-A02I /Asset/201235-a.jpg | N/A 0.250 Inch (in) Head Diameter Nylon Dart Clip with Slotted Leg | Head Diameter N/A 0.250 in6.40 mm | Mounting Hole Diameter N/A 0.093 in2.40 mm | Maximum Panel Size N/A 0.115 in2.90 mm |
20823014-A010I /Asset/201235-a.jpg | N/A 0.343 Inch (in) Head Diameter Nylon Dart Clip with Slotted Leg | Head Diameter N/A 0.343 in8.70 mm | Mounting Hole Diameter N/A 0.165 in4.20 mm | Maximum Panel Size N/A 0.133 in3.40 mm |
20823020-A020I /Asset/201235-a.jpg | N/A 0.468 Inch (in) Head Diameter Nylon Dart Clip with Slotted Leg | Head Diameter N/A 0.468 in11.90 mm | Mounting Hole Diameter N/A 0.200 in5.10 mm | Maximum Panel Size N/A 0.156 in4.00 mm |
