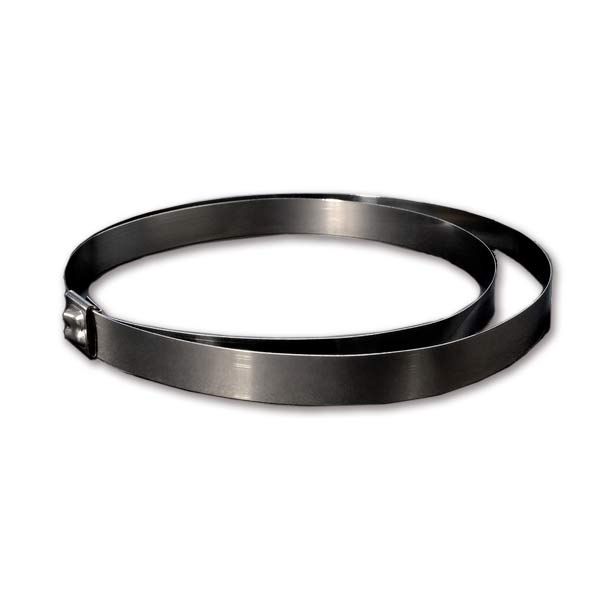

Double Wrap Stainless Steel Cable Ties
Metal
Double Wrap Stainless Steel Cable Ties wrap around the bundle twice, entering the head two times. They are made from 304 material for extra high strength in critical applications. They allow for tighter tensioning on non-resilient bundles. Grade 304 Cable Ties suit most general purpose requirements and can withstand most environmental conditions, particularly in applications where vibration, general weathering, radiation and temperature extremes are a concern.
Item # |
Item Name |
Maximum Bundle Diameter A |
Strength |
Approximate Length (Decimal) |
---|---|---|---|---|
47100137-19 /Asset/471146_a.jpg | N/A 18.500 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 2.000 in50.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 470.00 mm18.500 in |
47100138-19 /Asset/471146_a.jpg | N/A 22.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 3.000 in75.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 559.00 mm22.000 in |
47100139-19 /Asset/471146_a.jpg | N/A 28.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 4.000 in102.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 711.00 mm28.000 in |
47100140-19 /Asset/471146_a.jpg | N/A 34.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 5.000 in125.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 863.00 mm34.000 in |
47100141-19 /Asset/471146_a.jpg | N/A 40.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 6.000 in152.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 1016.00 mm40.000 in |
47100142-19 /Asset/471146_a.jpg | N/A 46.500 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 7.000 in175.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 1181.00 mm46.500 in |
47100143-19 /Asset/471146_a.jpg | N/A 53.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 8.000 in203.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 1345.00 mm53.000 in |
47100144-19 /Asset/471146_a.jpg | N/A 59.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 9.000 in225.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 1500.00 mm59.000 in |
47100145-19 /Asset/471146_a.jpg | N/A 65.000 Inch (in) Approximate Length Double Wrap Stainless Steel Cable Tie | Maximum Bundle Diameter A N/A 10.000 in254.00 mm | Strength N/A 600 lb2669 N | Approximate Length (Decimal) N/A 1652.00 mm65.000 in |
