Metal Cable Clips with Heel/Toe Design
Metal Cable Clips
Metal Cable Clips are spring clips that secure cable, wire and tubing safely away from dangerous areas. These one piece, self-retaining fasteners offer a heel/toe design that allows the clips to be pushed toward the mounting hole until the heel snaps into place. This clip can hold one or more tubes, wires and/or cables depending on the part design.
Item # |
Item Name |
Panel Thickness |
Tube Diameter |
Maximum Tube Size |
---|---|---|---|---|
01500487-00 /Asset/01397_a1.jpg | N/A 0.054 and 0.066 Inch (in) Panel Thickness One Tube Panel Center Edge Mount Cable Clip | Panel Thickness N/A 0.054 in0.066 in | Tube Diameter N/A 0.187 mm0.250 mm | Maximum Tube Size N/A 1 |

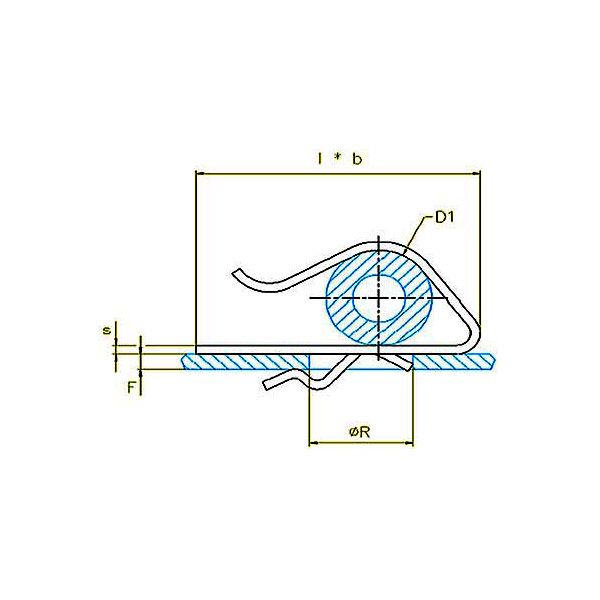

01500887-701 /Asset/01395_d.jpg | N/A 0.64 and 10.02 Inch (in) Panel Thickness Metal Cable Clip with Heel/Toe Design | Panel Thickness N/A 0.64 in10.02 in | Tube Diameter N/A 7.0 mm9.0 mm | Maximum Tube Size N/A 1 |
