Normaplast® SV T-Type Tapered Threaded Hose Connectors
Fluid and Air Management

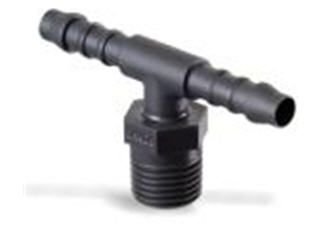

Normaplast® SV T-Type Tapered Threaded Connectors connect fluid-carrying hose or tubing reliably and efficiently. These are available in Metric, Whitworth or NPT tapered threads, each identified by color coding. The 2 push-on spigot ends are ribbed for a tight fit on the hose after assembly. They are made from Polyamide 6 nylon.
Item # |
Item Name |
Connector Inside Diameter |
Hose Inside Diameter |
Material |
---|---|---|---|---|
15N000558-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 8 x 1 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000559-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 10 x 1 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000560-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 14 x 1.5 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000561-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 1/8 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000562-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000563-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® 1/8 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000564-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000565-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 12 x 1.5 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 2.90 mm | Hose Inside Diameter N/A 4 mm | Material N/A Polyamide 6 Nylon |
15N000566-A32 /Asset/15n1256-a_1.jpg | N/A Normaplast® M 10 x 1 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000567-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 12 x 1.5 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000568-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 1/8 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000569-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000570-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® 1/8 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000571-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm | Material N/A Polyamide 6 Nylon |
15N000572-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 12 x 1.5 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 5.6 mm | Hose Inside Diameter N/A 8 mm | Material N/A Polyamide 6 Nylon |
15N000573-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® M 14 x 1.5 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 5.6 mm | Hose Inside Diameter N/A 8 mm | Material N/A Polyamide 6 Nylon |
15N000574-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 5.6 mm | Hose Inside Diameter N/A 8 mm | Material N/A Polyamide 6 Nylon |
15N000575-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® 1/4 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 5.6 mm | Hose Inside Diameter N/A 8 mm | Material N/A Polyamide 6 Nylon |
15N000576-XX /Asset/15n1256-a_1.jpg | N/A Normaplast® R 3/8 Thread Size SV T-Type Tapered Threaded Hose Connector | Connector Inside Diameter N/A 7 mm | Hose Inside Diameter N/A 10 mm | Material N/A Polyamide 6 Nylon |
