Normaplast® SV T-Type Reducing Hose Connectors
Fluid and Air Management

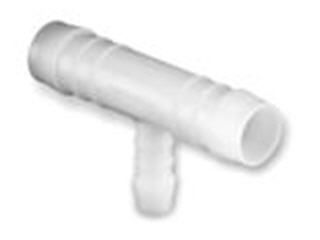

Normaplast® SV T-Type Push On Reducing Connectors connect hoses of differing diameters in a T-shaped configuration. They are made from ecru-colored Acetalcopolymeristat (POM) and connect pipes quickly and easily. The ribbed push-on spigot ensures a tight fit after assembly.
Item # |
Item Name |
Print Reference L1 |
Hose Inside Diameter D1 |
Material |
|---|---|---|---|---|
| 15N000639-XX /Asset/15n1261-a.jpg | N/A Normaplast® 3.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 25.00 mm | Hose Inside Diameter D1 N/A 3.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000640-XX /Asset/15n1261-a.jpg | N/A Normaplast® 4.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 35.00 mm | Hose Inside Diameter D1 N/A 4.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000641-XX /Asset/15n1261-a.jpg | N/A Normaplast® 6.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 49.00 mm | Hose Inside Diameter D1 N/A 6.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000642-XX /Asset/15n1261-a.jpg | N/A Normaplast® 8.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 56.00 mm | Hose Inside Diameter D1 N/A 8.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000643-XX /Asset/15n1261-a.jpg | N/A Normaplast® 8.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 56.00 mm | Hose Inside Diameter D1 N/A 8.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000644-XX /Asset/15n1261-a.jpg | N/A Normaplast® 8.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 58.00 mm | Hose Inside Diameter D1 N/A 8.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000645-XX /Asset/15n1261-a.jpg | N/A Normaplast® 10.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 62.00 mm | Hose Inside Diameter D1 N/A 10.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000646-XX /Asset/15n1261-a.jpg | N/A Normaplast® 10.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 62.00 mm | Hose Inside Diameter D1 N/A 10.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000647-XX /Asset/15n1261-a.jpg | N/A Normaplast® 10.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 64.00 mm | Hose Inside Diameter D1 N/A 10.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000648-XX /Asset/15n1261-a.jpg | N/A Normaplast® 12.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 69.00 mm | Hose Inside Diameter D1 N/A 12.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000649-XX /Asset/15n1261-a.jpg | N/A Normaplast® 12.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 69.00 mm | Hose Inside Diameter D1 N/A 12.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000650-XX /Asset/15n1261-a.jpg | N/A Normaplast® 12.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 69.00 mm | Hose Inside Diameter D1 N/A 12.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000651-XX /Asset/15n1261-a.jpg | N/A Normaplast® 15.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 78.00 mm | Hose Inside Diameter D1 N/A 15.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000652-XX /Asset/15n1261-a.jpg | N/A Normaplast® 15.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 79.00 mm | Hose Inside Diameter D1 N/A 15.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000653-XX /Asset/15n1261-a.jpg | N/A Normaplast® 18.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 79.00 mm | Hose Inside Diameter D1 N/A 18.00 mm | Material N/A Polyoxymethylene (POM) |
| 15N000654-XX /Asset/15n1261-a.jpg | N/A Normaplast® 18.00 Millimeter (mm) Hose Inside Diameter D1 SV T-Type Reducing Hose Connector | Print Reference L1 N/A 80.00 mm | Hose Inside Diameter D1 N/A 18.00 mm | Material N/A Polyoxymethylene (POM) |
