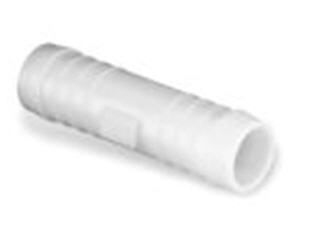

Normaplast® SV Straight Push-On Hose Connectors
Fluid and Air Management
Normaplast® SV Straight Push On Connectors are made from Acetalcopolymeristat (POM) and connect pipes made from PA6 or PA12.
Item # |
Item Name |
Overall Length |
Connector Inside Diameter |
Hose Inside Diameter |
---|---|---|---|---|
15N000618-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 25 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 25.0 mm | Connector Inside Diameter N/A 2.5 mm | Hose Inside Diameter N/A 3 mm |
15N000619-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 35 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 35 mm | Connector Inside Diameter N/A 2.7 mm | Hose Inside Diameter N/A 4 mm |
15N000620-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 45 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 45 mm | Connector Inside Diameter N/A 3 mm | Hose Inside Diameter N/A 5 mm |
15N000621-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 49 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 49.00 mm | Connector Inside Diameter N/A 4 mm | Hose Inside Diameter N/A 6 mm |
15N000622-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 56 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 56.00 mm | Connector Inside Diameter N/A 5.6 mm | Hose Inside Diameter N/A 8 mm |
15N000623-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 63 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 63.00 mm | Connector Inside Diameter N/A 7 mm | Hose Inside Diameter N/A 10 mm |
15N000624-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 66.5 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 66.5 mm | Connector Inside Diameter N/A 8.6 mm | Hose Inside Diameter N/A 12 mm |
15N000625-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 73 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 73 mm | Connector Inside Diameter N/A 8.6 mm | Hose Inside Diameter N/A 13 mm |
15N000626-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 79 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 79 mm | Connector Inside Diameter N/A 10 mm | Hose Inside Diameter N/A 14 mm |
15N000627-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 75 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 75 mm | Connector Inside Diameter N/A 12 mm | Hose Inside Diameter N/A 16 mm |
15N000628-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 76 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 76 mm | Connector Inside Diameter N/A 15 mm | Hose Inside Diameter N/A 19 mm |
15N000629-XX /Asset/15n1258-a_1.jpg | N/A Normaplast® 95 Millimeter (mm) Overall Length SV Straight Push-On Hose Connector | Overall Length N/A 95 mm | Connector Inside Diameter N/A 21 mm | Hose Inside Diameter N/A 25 mm |
