Heavy Duty High Torx® Worm Gear Clamps
Embossed or Lined Worm Gear Clamps

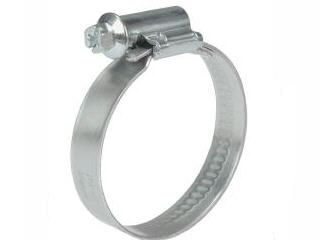

These Heavy Duty High Torx® Worm Gear Clamps are used in areas where extremely high band tensile forces and destructive torques are required. They have more robust housing for additional strength over the standard worm drive clamp. They deliver high band tensile force, even tension force distribution, and their fracture torques exceed those of competitive products, greatly increasing the safety of assembly. These clamps are recommended for use in the commercial vehicle sector, in cooling water connections, and air ducts for high and low pressure applications, and are only available in 12mm band width, with or without a constant tension spring insert.
1 2
Item # |
Item Name |
Maximum Clamp Size |
Minimum Clamp Size |
Band Width (Decimal) |
|---|---|---|---|---|
| 15N0000102-431Q /Asset/15n650-a_1.jpg | N/A 22.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 0.866 in22 mm | Minimum Clamp Size N/A 12 mm0.472 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000103-431Q /Asset/15n650-a_1.jpg | N/A 27.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.063 in27 mm | Minimum Clamp Size N/A 16 mm0.630 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000104-431Q /Asset/15n650-a_1.jpg | N/A 32.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.260 in32 mm | Minimum Clamp Size N/A 20 mm0.787 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000105-431Q /Asset/15n650-a_1.jpg | N/A 40.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.575 in40 mm | Minimum Clamp Size N/A 25 mm0.984 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000106-431Q /Asset/15n650-a_1.jpg | N/A 45.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.772 in45 mm | Minimum Clamp Size N/A 30 mm1.181 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000107-431Q /Asset/15n650-a_1.jpg | N/A 50.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.969 in50 mm | Minimum Clamp Size N/A 35.00 mm1.378 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000108-431Q /Asset/15n650-a_1.jpg | N/A 60.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 2.362 in60 mm | Minimum Clamp Size N/A 40 mm1.575 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000109-431Q /Asset/15n650-a_1.jpg | N/A 70.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 2.756 in70 mm | Minimum Clamp Size N/A 50 mm1.969 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000110-431Q /Asset/15n650-a_1.jpg | N/A 80.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 3.150 in80 mm | Minimum Clamp Size N/A 60 mm2.362 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000111-431Q /Asset/15n650-a_1.jpg | N/A 90.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 3.543 in90 mm | Minimum Clamp Size N/A 70 mm2.756 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000112-431Q /Asset/15n650-a_1.jpg | N/A 100.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 3.937 in100 mm | Minimum Clamp Size N/A 80 mm3.150 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000113-431Q /Asset/15n650-a_1.jpg | N/A 110.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 4.331 in110 mm | Minimum Clamp Size N/A 90 mm3.543 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000114-431Q /Asset/15n650-a_1.jpg | N/A 120.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 4.724 in120 mm | Minimum Clamp Size N/A 100 mm3.937 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000115-431Q /Asset/15n650-a_1.jpg | N/A 130.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 5.118 in130 mm | Minimum Clamp Size N/A 110 mm4.331 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000116-431Q /Asset/15n650-a_1.jpg | N/A 140.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 5.512 in140 mm | Minimum Clamp Size N/A 120 mm4.724 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000117-431Q /Asset/15n650-a_1.jpg | N/A 150.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 5.906 in150 mm | Minimum Clamp Size N/A 130 mm5.118 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000118-431Q /Asset/15n650-a_1.jpg | N/A 160.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 6.299 in160 mm | Minimum Clamp Size N/A 140 mm5.512 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000119-431Q /Asset/15n650-a_1.jpg | N/A 170.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 6.693 in170 mm | Minimum Clamp Size N/A 150 mm5.906 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000120-431Q /Asset/15n650-a_1.jpg | N/A 180.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 7.087 in180 mm | Minimum Clamp Size N/A 160 mm6.299 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000121-431Q /Asset/15n650-a_1.jpg | N/A 200.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 7.874 in200 mm | Minimum Clamp Size N/A 180 mm7.087 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000122-431Q /Asset/15n650-a_1.jpg | N/A 220.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 8.661 in220.00 mm | Minimum Clamp Size N/A 200.00 mm7.874 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000123-304Q /Asset/15n650-a_1.jpg | N/A 45.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.772 in45 mm | Minimum Clamp Size N/A 30 mm1.181 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000124-304Q /Asset/15n650-a_1.jpg | N/A 50.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 1.969 in50 mm | Minimum Clamp Size N/A 35.00 mm1.378 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000125-304Q /Asset/15n650-a_1.jpg | N/A 60.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 2.362 in60 mm | Minimum Clamp Size N/A 40 mm1.575 in | Band Width (Decimal) N/A 12.00 mm |
| 15N0000126-304Q /Asset/15n650-a_1.jpg | N/A 70.00 Millimeter (mm) Maximum Size Heavy Duty High Torx® Worm Gear Clamp | Maximum Clamp Size N/A 2.756 in70 mm | Minimum Clamp Size N/A 50 mm1.969 in | Band Width (Decimal) N/A 12.00 mm |
