• Short Universal Bushings

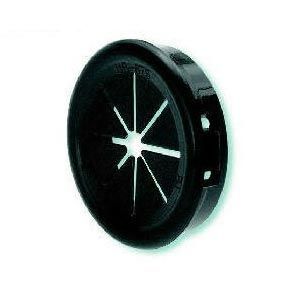

Short Universal Bushings are ideal for applications with limited internal clearance. Fingertip pressure snap-locks these bushings into their mounting hole. Flexible "shutters" adjust to accommodate and support any shape from 0.125" to 0.560" (3.20 mm to 14.20 mm).
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Head Diameter

Inside Diameter

Mounting Hole Diameter

N/A 0.729 Inch (in) Head Diameter Short Universal Bushing N/A 0.729 in18.50 mm N/A 0.437 in11.10 mm N/A 0.625 in15.90 mm
N/A 0.859 Inch (in) Head Diameter Short Universal Bushing N/A 0.859 in21.80 mm N/A 0.500 in12.70 mm N/A 0.750 in19.10 mm
N/A 0.937 Inch (in) Head Diameter Short Universal Bushing N/A 0.937 in23.80 mm N/A 0.560 in14.20 mm N/A 0.875 in22.20 mm
N/A 0.600 Inch (in) Head Diameter Short Universal Bushing N/A 0.600 in15.20 mm N/A 0.312 in7.60 mm N/A 0.500 in12.70 mm
N/A 1.063 Inch (in) Head Diameter Short Universal Bushing N/A 1.063 in27.00 mm N/A 0.750 in19.00 mm N/A 1.000 in25.40 mm
N/A 1.156 Inch (in) Head Diameter Short Universal Bushing N/A 1.156 in29.40 mm N/A 0.820 in20.80 mm N/A 1.093 in27.80 mm
