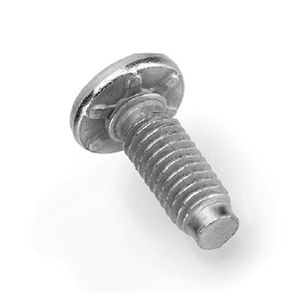

• Strux® Clinch Studs
Strux® Clinch Studs provide an external thread in sheet metals. They are a cost effective, high performance alternative to other staked or welded products. They are designed for maximum resistance to push-out and rotation, and eliminate problems associated with weld studs.
1 - 25 of 28 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Material Thickness (Decimal)

Approximate Staking Force

Recommended Hole Size

N/A Strux® 4.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1 mm N/A 13.30 kN N/A 4.68 to 4.78 mm
N/A Strux® 4.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1.580 mm N/A 16.90 kN N/A 4.68 to 4.78 mm
N/A Strux® 5.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1 mm N/A 13.30 kN N/A 5.68 to 5.78 mm
N/A Strux® 5.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1.50 mm N/A 16.50 kN N/A 5.68 to 5.78 mm
N/A Strux® 6.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1 mm N/A 20.20 kN N/A 6.68 to 6.78 mm
N/A Strux® 6.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1.50 mm N/A 25.80 kN N/A 6.68 to 6.78 mm
N/A Strux® 6.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 2.30 mm N/A 26.70 kN N/A 6.68 to 6.78 mm
N/A Strux® 8.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 1.50 mm N/A 35.60 kN N/A 8.68 to 8.78 mm
N/A Strux® 8.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 2.30 mm N/A 42.30 kN N/A 8.68 to 8.78 mm
N/A Strux® 8.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 3 mm N/A 45.40 kN N/A 8.68 to 8.78 mm
N/A Strux® 10.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 2.30 mm N/A 66.70 kN N/A 10.68 to 10.78 mm
N/A Strux® 10.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 3 mm N/A 73.40 kN N/A 10.68 to 10.78 mm
N/A Strux® 12.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 2.30 mm N/A 73.40 kN N/A 12.68 to 12.78 mm
N/A Strux® 12.61 Millimeter (mm) Retaining Ring Size Clinch Stud N/A 3 mm N/A 77.80 kN N/A 12.68 to 12.78 mm
N/A Strux® 0.176 Inch (in) Retaining Ring Size Clinch Stud N/A 20 gauge0.036 in N/A N/A 0.178 to 0.182 in
N/A Strux® 0.176 Inch (in) Retaining Ring Size Clinch Stud N/A 16 gauge0.060 in N/A N/A 0.178 to 0.182 in
N/A Strux® 0.204 Inch (in) Retaining Ring Size Clinch Stud N/A 20 gauge0.036 in N/A N/A 0.206 to 0.210 in
N/A Strux® 0.204 Inch (in) Retaining Ring Size Clinch Stud N/A 16 gauge0.060 in N/A N/A 0.206 to 0.210 in
N/A Strux® 0.270 Inch (in) Retaining Ring Size Clinch Stud N/A 20 gauge0.036 in N/A N/A 0.272 to 0.276 in
N/A Strux® 0.270 Inch (in) Retaining Ring Size Clinch Stud N/A 16 gauge0.060 in N/A N/A 0.272 to 0.276 in
N/A Strux® 0.270 Inch (in) Retaining Ring Size Clinch Stud N/A 13 gauge0.090 in N/A N/A 0.272 to 0.276 in
N/A Strux® 0.331 Inch (in) Retaining Ring Size Clinch Stud N/A 16 gauge0.060 in N/A N/A 0.333 to 0.337 in
N/A Strux® 0.270 Inch (in) Retaining Ring Size Clinch Stud N/A 13 gauge0.090 in N/A N/A 0.333 to 0.337 in
N/A Strux® 0.270 Inch (in) Retaining Ring Size Clinch Stud N/A 11 gauge0.120 in N/A N/A 0.333 to 0.337 in
N/A Strux® 0.398 Inch (in) Retaining Ring Size Clinch Stud N/A 13 gauge0.090 in N/A N/A 0.400 to 0.404 in
