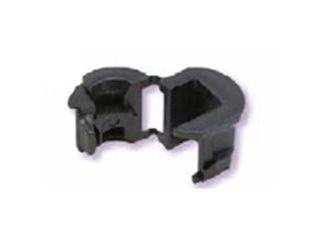

Thin Panel RDD Lockits™ for Round Wires provide all the benefits of the standard RDD Lockits for use in thinner panels. A single panel locking step provides a secure fit into round mounting holes (0.625" with 0.550 flats) in 0.062" panels. An RDD strain relief mounting hole punch is available. See "Strain Reliefs for Wire/Cables" under "Wiring Management."
Unit of Measure

Specifications

Temperature Index1 N/A 125 ºC

Conductor Sizes

 N/A 18/3 AWG

Cable Shape

 N/A Round

Panel Hole Shape

 N/A DD Strain Relief Hole Round

Maximum Approximate Cable Size

 N/A 0.330 in8.40 mm

Minimum Approximate Size

 N/A 0.300 in7.60 mm

Mounting Hole Size

 N/A 0.625 in15.90 mm

Mounting Hole with Flats of

 N/A 0.550 in14.00 mm

Panel Thickness

 N/A 0.062 in1.6 mm

Color

 N/A White

Note for Color

 N/A Others available at extra charge (minimum quantities apply). Please contact an EFC Sales Engineer for further information.

Material

 N/A Nylon 6/6

Industry Standards/Certifications

 N/A Recognized under the Component Program of Underwriter's Laboratories File #E-15331. Certified by the Canadian Standards Association File #LR-8919.

Flammability Rating

 N/A 94V-2

Features and Benefits

Features and Benefits

 N/A
  • Installs into a punched standard round or RDD strain relief hole.
  • When installed into an RDD strain relief hole, the cable is prevented from turning; thereby protecting it from twisting or other stress.
  • Can be preassembled onto the wire since panel insertion isn't required to keep it locked on the wire.
  • Once preassembled the wire and lockit can be easily snapped into place with only the use of simple electrical pliers.
  • Automated application equipment is available which speeds assembly and lowers costs
  • 1 Maximum temperature on part not to exceed 105 ºC
