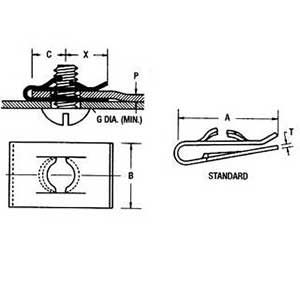

Single Thread U-Nuts are used where a full bearing surface on the lower leg is desired. During assembly, these high-performance "U" nuts are placed over the edge of a stamped panel, or through a pre-stamped slot, and are simply pushed until the rear of the fastener locates against the plastic or metal panel edge or snaps into the clearance hole. They are self-retained in the screw-receiving position to provide simple, rapid attachment of mating panels and cannot turn as the screw is driven.
These U-Nuts will not freeze on screw threads. In fact, the U-Nut's impression actually cleans out rust, dirt or paint clots from the screw threads as they are removed.
These U-Nuts will not freeze on screw threads. In fact, the U-Nut's impression actually cleans out rust, dirt or paint clots from the screw threads as they are removed.
Unit of Measure
Specifications
Screw Size |
N/A M4.2 |
Panel Size |
N/A 7.35 to 7.85 mm |
Material Thickness (Decimal) |
N/A 0.71 mm |
Hole Diameter |
N/A 6.25 mm |
Width |
N/A 15.88 mm |
Length |
N/A 14.47 mm |
Design Variation |
N/A F |
Hole Center to Edge |
N/A 7.6 mm |
Impression Center to End |
N/A 5.95 mm |
Material |
N/A Heat-Treated Spring Steel |
Applications
Applications |
N/A U- Nuts can be designed into an automatic washing machine to secure a solenoid and mounting bracket. |
