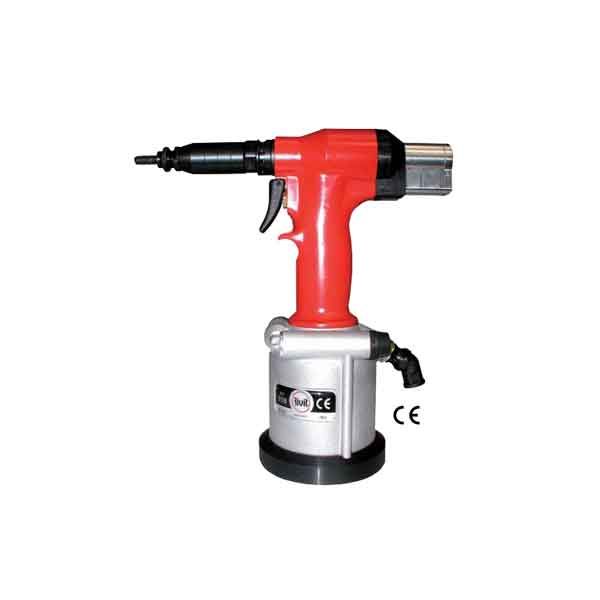

RIV938 Pull-to-Pressure Tools deliver consistent installations and longer mandrel life. This tool is available in unified or metric kits. RIV938 Pull-to-Pressure Tools are also sold individually, with nose pieces sold separately.
Unit of Measure

Specifications

Thread Type

 N/A Unified

Air Pressure

 N/A 90 psi

Air Use Volume

 N/A 305 in³

Maximum Axial Pulling Load at 90 Pound Per Square Inch (psi) Pressure

 N/A 4271 lb

Maximum Stroke

 N/A 0.256 in

Minimum Hose Inside Diameter

 N/A 0.375 in

Tool Weight

 N/A 4 lb

For Use With

 N/A #4 to 3/8 in Female Threaded Inserts and #8 to 5/16 Male Threaded Inserts

Features and Benefits

Features and Benefits

 N/A
  • Pressure controlled setting allows same insert to be used with variable material thicknesses without adjusting tool
  • Pull-to-pressure offers longer mandrel life
  • Mandrel, a hardened socket head cap screw, is easily replaced
  • Auto-reverse increases rate of production
  • Ensures thread integrity by eliminating over or double installing
Optional parts for RIV938 Tools include: Anti-scratch wing protection and a security cap for the air pressure regulator
  • RIV938 Unified Kit includes Tool and Tooling for 6-32, 8-32, 10-32, 1/4-20, 5/16-18 and 3/8-16 Thread Sizes (RIV938-UN)
  • RIV938 Metric Kit includes Tool and Tooling for M4 through M10 Thread Sizes (RIV938-MT)
