Short Cable Clips with Arrow Head Prong
Plastic Routing Clamps and Clips
These Short Cable Clips with an Arrow head Prong are a perfect choice for low-profile applications where cables must have freedom of movement. The arrowhead prong snap-locks the saddle into a 0.138" diameter hole in a 0.063" panel, and allows the saddle to rotate in its mounting hole. This reduces strain on moving cables. Commonly called, "Wire Saddles," these cable clips are ideal for routing wires or fiber optic cable, providing easy top-load insertion and protection from abrasion.

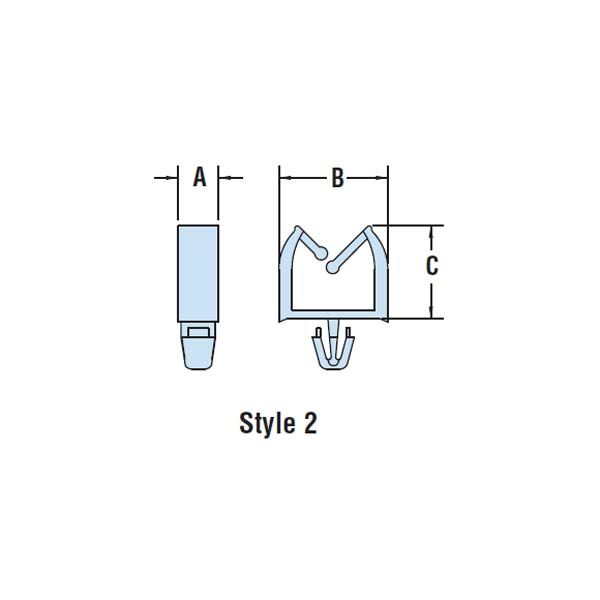

Item # |
Item Name |
Material |
Mounting Hole Diameter |
Footprint Size |
Overall Height |
---|---|---|---|---|---|
204235 /Asset/204235_a.jpg | N/A 0.299 Inch (in) Small Outside Diameter Short Cable Clip with Arrow Head Prong | Material N/A Nylon 6/6 | Mounting Hole Diameter N/A 0.138 in3.5 mm | Footprint Size N/A 0.16 x 0.43 in4.0 x 10.8 mm | Overall Height N/A 0.36 in9.10 mm |
204235F /Asset/204235_a.jpg | N/A 0.330 Inch (in) Small Outside Diameter Short Cable Clip with Arrow Head Prong | Material N/A Nylon 6/6 | Mounting Hole Diameter N/A 0.138 in3.5 mm | Footprint Size N/A 0.16 x 0.43 in4.0 x 10.8 mm | Overall Height N/A 0.36 in9.10 mm |
