R-LOK® Standard Plastic Expansion Rivets
Plastic Rivets

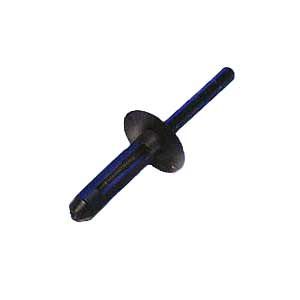

The unique, one piece design of these Standard Plastic Expansion Rivets provides an enlarged bearing surface that will hold panels together securely without restricting thermal expansion. These rivets quickly insert from either side of the assembly and can be used with most standard pop rivet setting tools. As the tool pulls the pin through the body, it draws the panel together. When set, the pin breaks off even with the head, leaving an attractive, finished appearance. They are particularly effective for soft materials such as rubber, urethane or padded fabrics.
Item # |
Item Name |

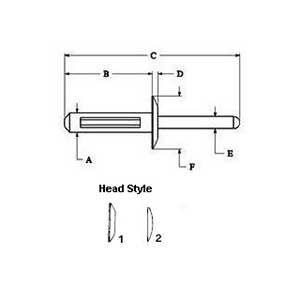

Print Reference B |
Print Reference C |
Print Reference D |
|---|---|---|---|---|
| 08800231-C03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.059 to 0.177 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 0.728 in | Print Reference C N/A 1.98 in | Print Reference D N/A 0.098 in |
| 70009079 /Asset/03705-a_3.jpg | N/A R-LOK® 0.118 to 0.177 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 0.787 in20.00 mm | Print Reference C N/A 1.89 in48.00 mm | Print Reference D N/A 0.071 in1.8 mm |
| 08800095-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.177 to 0.236 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 0.65 in16.5 mm | Print Reference C N/A 1.831 in46.5 mm | Print Reference D N/A 0.071 in1.8 mm |
| 08800261-C03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.177 to 0.236 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 0.65 in16.5 mm | Print Reference C N/A 1.831 in46.5 mm | Print Reference D N/A 0.071 in1.8 mm |
| 08800238-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.157 to 0.335 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 1.102 in | Print Reference C N/A 2.205 in | Print Reference D N/A 0.098 in |
| 08800020-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.157 to 0.236 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 1.102 in28.00 mm | Print Reference C N/A 2.205 in56.00 mm | Print Reference D N/A 0.098 in2.50 mm |
| 08605028-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 0.157 to 0.394 Inch (in) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 1.102 in28.00 mm | Print Reference C N/A 2.205 in56.00 mm | Print Reference D N/A 0.098 in2.50 mm |
| 08800077-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 8.00 to 12.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 31.20 mm | Print Reference C N/A 59.00 mm | Print Reference D N/A 2.50 mm |
| 08605015-A03Q /Asset/03705-a_3.jpg | N/A R-LOK® 6.00 to 10.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 25.00 mm | Print Reference C N/A 51.00 mm | Print Reference D N/A 1.8 mm |
| 70003697 /Asset/03705-a_3.jpg | N/A R-LOK® 1.40 to 4.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0396 04-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.40 to 4.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 72.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0396 06-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 2.50 to 5.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0396 07-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 5.00 to 8.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 22.00 mm | Print Reference C N/A 56.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0475 06-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 3.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0500 14-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 3.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 3.30 mm |
| 0826 0500 15-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 3.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 17.00 mm | Print Reference C N/A 46.5 mm | Print Reference D N/A 3.30 mm |
| 0826 0500 19-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 3.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 16.5 mm | Print Reference C N/A 46.5 mm | Print Reference D N/A 3.30 mm |
| 0826 0500 18-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 4.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 3.30 mm |
| 0826 0500 16-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 2.50 to 3.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 19.00 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0500 21-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 2.50 to 3.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 19.00 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 0826 0500 10-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 3.00 to 6.00 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 20.00 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 1.8 mm |
| 0826 0500 17-H4004 /Asset/03705-a_3.jpg | N/A R-LOK® 7.50 to 8.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 24.00 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
| 70008925 /Asset/03705-a_3.jpg | N/A R-LOK® 6.00 to 10.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 26.00 mm | Print Reference C N/A 56.00 mm | Print Reference D N/A 2.50 mm |
| 03605003-A03 /Asset/03705-a_3.jpg | N/A R-LOK® 6.00 to 10.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 26.00 mm | Print Reference C N/A 65.50 mm | Print Reference D N/A 2.50 mm |
| 03605004-A03 /Asset/03705-a_3.jpg | N/A R-LOK® 1.50 to 4.50 Millimeter (mm) Panel Size Standard Plastic Expansion Rivet | Print Reference B N/A 18.50 mm | Print Reference C N/A 48.00 mm | Print Reference D N/A 2.50 mm |
