Long-Lok® Ball-Style Spring Plungers with Hex Sockets
Knobs and Grips

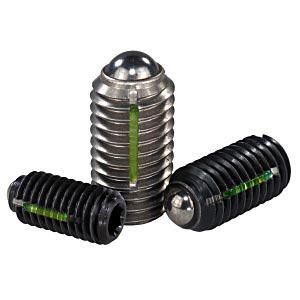

These Long-Lok® Ball-Style Spring Plungers with Hex Sockets have bodies, balls & springs made from Steel and feature the Long-Lok® Thread System for securing the plunger in any position within the threaded hole. Long-Lok®: Clockwise insertion into a tapped hole expands the Long-Lok® System in the opposite direction, increasing the resistance and therefore the amount of torque required for loosening.
Item # |
Item Name |
Dimension D |
Dimension L |
Approximate Spring Force Final Pressure F2 |
---|---|---|---|---|
13K03031SM6-ST /Asset/131584-a.jpg | N/A Long-Lok® M6 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A M6 | Dimension L N/A 15 mm | Approximate Spring Force Final Pressure F2 N/A 13 N |
13K0BHLLSA2-STL /Asset/131584-a.jpg | N/A Long-Lok® 1/4-20 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A 1/4-20 | Dimension L N/A 15 mm | Approximate Spring Force Final Pressure F2 N/A 40 N |
13K30BHLLH2A-SS /Asset/131584-a.jpg | N/A Long-Lok® 1/2-13 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A 1/2-13 | Dimension L N/A 26 mm | Approximate Spring Force Final Pressure F2 N/A 120 N |
13K30BHLLHM8-STL /Asset/131584-a.jpg | N/A Long-Lok® M8 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A M8 | Dimension L N/A 18 mm | Approximate Spring Force Final Pressure F2 N/A 73 N |
13K30BHLLSA2-STL /Asset/131584-a.jpg | N/A Long-Lok® 1/4-20 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A 1/4-20 | Dimension L N/A 15 mm | Approximate Spring Force Final Pressure F2 N/A 13 N |
13K30BHLLSA4-SS /Asset/131584-a.jpg | N/A Long-Lok® 3/8-16 Thread Size Ball-Style Spring Plunger with Hex Sockets | Dimension D N/A 3/8-16 | Dimension L N/A 23 mm | Approximate Spring Force Final Pressure F2 N/A 35 N |
