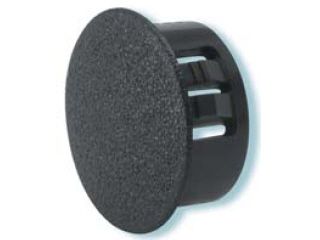

• HEYCO® Heat Stabilized Nylon Dome Hole Plugs
HEYCO® Heat Stabilized Nylon Dome Hole Plugs are molded from a Halogen-free, non-toxic nylon material which will not burn or produce toxic gases in the event of a fire. They are UV resistant, and self-extinguishing. Their convex, matte finish head tapers to a thin edge, and they are used to close unneeded panel holes.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Mounting Hole Diameter

Head Diameter

Maximum Panel Size

N/A HEYCO® 1.015 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.875 in22.20 mm N/A 1.015 in25.80 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.203 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.000 in25.40 mm N/A 1.203 in30.60 mm N/A 0.125 in3.20 mm
N/A HEYCO® 0.921 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.750 in19.10 mm N/A 0.921 in23.40 mm N/A 0.125 in3.20 mm
N/A HEYCO® 0.265 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.187 in4.75 mm N/A 0.265 in6.70 mm N/A 0.062 in1.60 mm
N/A HEYCO® 0.468 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.375 in9.50 mm N/A 0.468 in11.90 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.375 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.250 in31.70 mm N/A 1.375 in34.90 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.500 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.375 in34.90 mm N/A 1.500 in38.10 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.671 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.500 in38.10 mm N/A 1.671 in42.40 mm N/A 0.125 in3.20 mm
N/A HEYCO® 2.170 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 2.000 in50.80 mm N/A 2.170 in55.10 mm N/A 0.125 in3.20 mm
N/A HEYCO® 0.531 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.437 in11.10 mm N/A 0.531 in13.50 mm N/A 0.125 in3.20 mm
N/A HEYCO® 0.312 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.250 in6.40 mm N/A 0.312 in7.90 mm N/A 0.062 in1.60 mm
N/A HEYCO® 0.375 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.312 in7.90 mm N/A 0.375 in9.50 mm N/A 0.062 in1.60 mm
N/A HEYCO® 0.570 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.500 in12.70 mm N/A 0.570 in14.50 mm N/A 0.125 in3.20 mm
N/A HEYCO® 0.734 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 0.625 in15.90 mm N/A 0.734 in18.60 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.218 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.109 in28.2 mm N/A 1.218 in30.90 mm N/A 0.125 in3.20 mm
N/A HEYCO® 1.906 Inch (in) Head Diameter Heat Stabilized Nylon Dome Hole Plug N/A 1.750 in44.50 mm N/A 1.906 in48.40 mm N/A 0.125 in3.20 mm
