Oetiker® 1-Ear Clamps with Inserts
Crimp Style Clamps

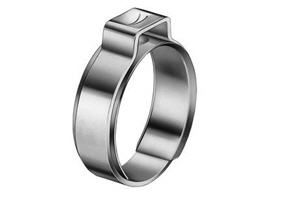

Oetiker® 1-Ear Clamps with Inserts are ideal for demanding hose or tube clamping applications, such as rubber or synthetic materials. They feature the same ear with the "dimple" as a standard 1-Ear Clamp, providing increased grip strength and a spring-like "breathing" action with no loosening. The added insert has an oval outward dimple which is positioned precisely under the clamp ear, effectively preventing material from being lifted into the ear gap during clamp closure. This double dimple combination between the insert and clamp creates a particularly strong all-around effective compression seal. Clamp Size Range is 2.9 - 17.5 mm; larger sizes are available on request.
1 2
Item # |
Item Name |
Band Width (Decimal) |
Maximum Clamp Size |
Minimum Clamp Size |
---|---|---|---|---|
14000079-19Q /Asset/1487-a_1_2.jpg | N/A 0.543 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.543 in13.80 mm | Minimum Clamp Size N/A 0.464 in11.80 mm |
14000080-19Q /Asset/1487-a_1_2.jpg | N/A 0.562 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.562 in14.30 mm | Minimum Clamp Size N/A 0.484 in12.30 mm |
14000081-19Q /Asset/1487-a_1_2.jpg | N/A 0.582 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.582 in14.80 mm | Minimum Clamp Size N/A 0.503 in12.80 mm |
14000082-19Q /Asset/1487-a_1_2.jpg | N/A 0.602 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.602 in15.30 mm | Minimum Clamp Size N/A 0.515 in13.10 mm |
14000083-19Q /Asset/1487-a_1_2.jpg | N/A 0.622 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.622 in15.80 mm | Minimum Clamp Size N/A 0.519 in13.20 mm |
14000084-19Q /Asset/1487-a_1_2.jpg | N/A 0.633 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.633 in16.10 mm | Minimum Clamp Size N/A 0.547 in13.90 mm |
14000085-19Q /Asset/1487-a_1_2.jpg | N/A 0.661 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.661 in16.80 mm | Minimum Clamp Size N/A 0.574 in14.60 mm |
14000499-06Q /Asset/1487-a_1_2.jpg | N/A 0.335 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A 0.291 in7.40 mm | Maximum Clamp Size N/A 0.335 in8.50 mm | Minimum Clamp Size N/A 0.276 in7.00 mm |
14000944-19Q /Asset/1487-a_1_2.jpg | N/A 0.799 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.799 in20.30 mm | Minimum Clamp Size N/A 0.708 in18.00 mm |
14001000-19Q /Asset/1487-a_1_2.jpg | N/A 0.700 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.700 in17.80 mm | Minimum Clamp Size N/A 0.614 in15.60 mm |
14001007-19Q /Asset/1487-a_1_2.jpg | N/A 1.035 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 1.035 in26.30 mm | Minimum Clamp Size N/A 0.917 in23.30 mm |
14001034-19Q /Asset/1487-a_1_2.jpg | N/A 0.740 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.740 in18.80 mm | Minimum Clamp Size N/A 0.649 in16.50 mm |
14001035-19Q /Asset/1487-a_1_2.jpg | N/A 0.830 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.830 in21.10 mm | Minimum Clamp Size N/A 0.740 in18.80 mm |
14001036-19Q /Asset/1487-a_1_2.jpg | N/A 0.897 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.897 in22.80 mm | Minimum Clamp Size N/A 0.795 in20.20 mm |
14001037-19Q /Asset/1487-a_1_2.jpg | N/A 0.976 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.976 in24.80 mm | Minimum Clamp Size N/A 0.866 in22.00 mm |
14001038-19Q /Asset/1487-a_1_2.jpg | N/A 1.007 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 1.007 in25.60 mm | Minimum Clamp Size N/A 0.905 in23 mm |
14001039-19Q /Asset/1487-a_1_2.jpg | N/A 0.205 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A 0.217 in5.50 mm | Maximum Clamp Size N/A 0.205 in5.20 mm | Minimum Clamp Size N/A 0.165 in4.20 mm |
14001123-19Q /Asset/1487-a_1_2.jpg | N/A 0.759 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.759 in19.30 mm | Minimum Clamp Size N/A 0.673 in17.10 mm |
14001124-19Q /Asset/1487-a_1_2.jpg | N/A 0.787 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.787 in20 mm | Minimum Clamp Size N/A 0.673 in17.10 mm |
14001126-19Q /Asset/1487-a_1_2.jpg | N/A 0.937 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 0.937 in23.80 mm | Minimum Clamp Size N/A 0.826 in21.00 mm |
14002128-19Q /Asset/1487-a_1_2.jpg | N/A 1.181 Inch (in) Maximum Size 1-Ear Clamp with Inserts | Band Width (Decimal) N/A | Maximum Clamp Size N/A 1.181 in30.00 mm | Minimum Clamp Size N/A 1.043 in26.50 mm |
