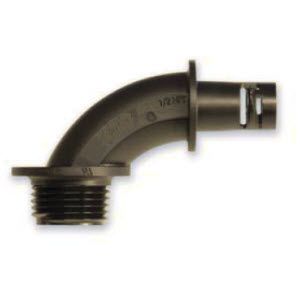

90º Liquid Tight NPT Fittings are an easy way to create permanent assembly between tubing and fittings. Simply push the tubing over the fitting ferrule until tubing "clicks" into place. Liquid Tight Fittings are available in 4 sizes, low cost and light weight for use in both dry and wet applications. The use of an O-ring may be required for a complete liquid tight system with a non-threaded mounting hole.
Unit of Measure

Specifications

Thread Size

 N/A 1/2 in

Thread Type

 N/A National Pipe Thread (NPT)

Clearance Hole

 N/A 0.875 in22.2 mm

Thread Length

 N/A 0.52 in13.2 mm

Fits Trade Size

 N/A 1/2 in

Flange Diameter

 N/A 1.23 in31.2 mm

Maximum Overall Length B

 N/A 1.75 in44.5 mm

Maximum Overall Length C

 N/A 2.74 in69.6 mm

Color

 N/A Black

Material

 N/A Nylon 66

Flammability Rating

 N/A 94V-2

Industry Standards/Certifications

 N/A Recognized under Underwriters Laboratories File E121095. Certified to both Canadian and U.S. requirements.

Applications

Applications

 N/A Automotive Equipment Computer and Peripherals Control Panels Fiber Optic Heating, Ventilation, and Air Conditioning (HVAC) Hydraulic Lifts Industrial Equipment Lab Equipment Mdical Equipment Motors and Generators Robotics Scientific and Other Instruments

Features and Benefits

Features and Benefits

 N/A
  • Easy, permanent assembly
  • Quick and easy installation
  • Suitable for use in high vibration & flexing applications
  • Resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents
  • For use in both wet and dry applications
  • Rated for NEMA 4 and 4X applications when used with HEYCO®-Flex III Tubing
  • Rated for NEMA Type 3R applications
  • Lightweight and lower installed cost
  • Flame retardant, won't burn

Note

Note

 N/A Material Temperature Index: Maximum temperature on part not to exceed 221 ºF (105 ºC)
