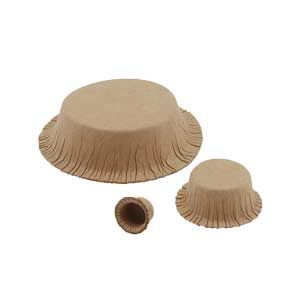

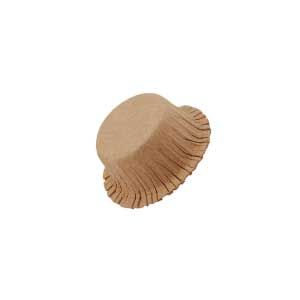

Paper Tapered Plugs are an environmentally friendly, economical masking solution made from recycled paper. They do not promote condensation and their closures withstand up to 400º F (204º C) which makes them well-suited for low-to-high temperature applications.
Unit of Measure
Specifications
Withstands Temperature |
N/A Up to 400 ºFUp to 204 ºC |
Material |
N/A Recycled Paper |
Color |
N/A Tan |
Length |
N/A 0.736 in18.7 mm |
Flange Outside Diameter |
N/A 4.091 in103.9 mm |
Large Outside Diameter |
N/A 3.598 in91.4 mm |
Small Outside Diameter |
N/A 3.276 in83.2 mm |
To Fit Female National Pipe Thread (NPT) |
N/A 3 in |
Features and Benefits
Features and Benefits |
N/A
|
Note
Note |
N/A Due to material, these plugs may have minor dimensional variation caused by changes in relative humidity. Flange concentricity may vary. Due to this paper’s natural structure, the product may be oblong in free state which generally aids in its retention capability. Part dimensions are typical from a measured lot. Individual pieces may vary. |
