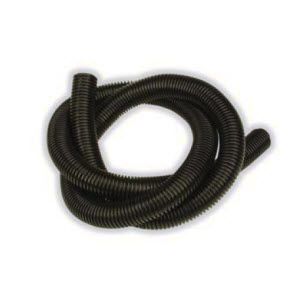

Heyco-Flex™ III Liquid Tight Tubing has extreme flexibility and can be used in very tight quarters. There is no threading of the tubing required for installation. This eliminates the possibility of cutting the tubing and creating leak paths. Drag on wiring is reduced by the rounded internal corrugations. Heyco-Flex™ III Liquid Tight Tubing is both lightweight, resists corrosion, oil, water and many chemicals. The tubing can be used in many applications such as: HVAC, Automotive Equipment, Fiber Optics, Computer and Peripherals, Lab Equipment, Medical Equipment, Motors and Generator, Pumps, Control Panels, Hydraulic Lifts, and Scientific and Other Instruments.
Unit of Measure

Specifications

Brands

 N/A Heyco-Flex™

Inside Diameter

 N/A 0.651 in16.5 mm

Outside Diameter

 N/A 0.850 in21.6 mm

Trade Size

 N/A 1/2 in

Coil Length

 N/A 100 ft

Color

 N/A Black

Material

 N/A Halogen Free Nylon 6

Temperature Index

 N/A -0.04 to 221 ºF-18 to 105 ºC

Flammability Rating

 N/A 94V-0

Industry Standards/Certifications

 N/A Recognized under Underwriters Laboratories File E121095. Certified to both Canadian and U.S. Requirements under File E121095.

Applications

Applications

 N/A Automotive Equipment Computer and Peripherals Control Panels Fiber Optics Heating, Ventilation, and Air Conditioning (HVAC) Hydraulic Lifts Lab Equipment Medical Equipment Motors and Generator Pumps Scientific and Other Instruments

Features and Benefits

Features and Benefits

 N/A
  • Corrugated tubing for trade sizes 3/8" through 1"
  • Flame retardant, won't burn
  • Rated for NEMA 4 and 4X applications when used with Heyco-Flex III Liquid Tight Fittings
  • Rated for NEMA Type 3R applications
  • Maximum flexibility, can be used in extremely tight quarters.
  • Bend radius of Heyco-Flex™ III is equal to its outside diameter
  • No threading of the tubing required to install. This eliminates the possibility of cutting the tubing and creating leak paths.
  • Easy, permanent assembly between the tubing and fittings: push the tubing over the fitting ferrule until the tubing clicks into place.
  • Resists corrosion, oil, and water.
  • For use in both wet and dry applications
