With a Self-Threading Acorn Shaft Retainer, there is no thread to find and no binding from dirt or damaged threads. Because of their prevailing torque, these fasteners provide excellent vibration resistance. Stud materials, which must be appreciably softer than that of the fasteners, include die cast zinc, aluminum, molded plastics, steel and brass.
Unit of Measure
Specifications
Fastener Type |
N/A Acorn |
Material |
N/A Carbon Spring Steel SAE 1050 |
Material Thickness (Decimal) |
N/A 0.016 in0.41 mm |

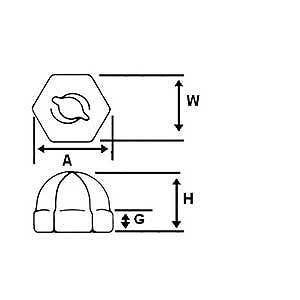

Overall Height |
N/A 0.265 in6.73 mm |
Maximum Across Corners |
N/A 0.360 in9.14 mm |
Minimum Across Corners |
N/A 0.348 in8.84 mm |
Hex Height |
N/A 0.093 in2.36 mm |
Maximum Hex Width |
N/A 0.312 in7.93 mm |
Minimum Hex Width |
N/A 0.306 in7.77 mm |
Thread Stud Rod or Wire Size |
N/A 1/8 in3.18 mm |
Features and Benefits
Features and Benefits |
N/A Self-Threading Acorn Nuts are available in 3 sizes, and are turned onto non-threaded projections or studs. These fasteners eliminate the cost of cutting threads and the problems of cross-threading. They permit simpler, more economical and ultimately better designs. They are available in 2 different styles and varying sizes to meet your needs. |
