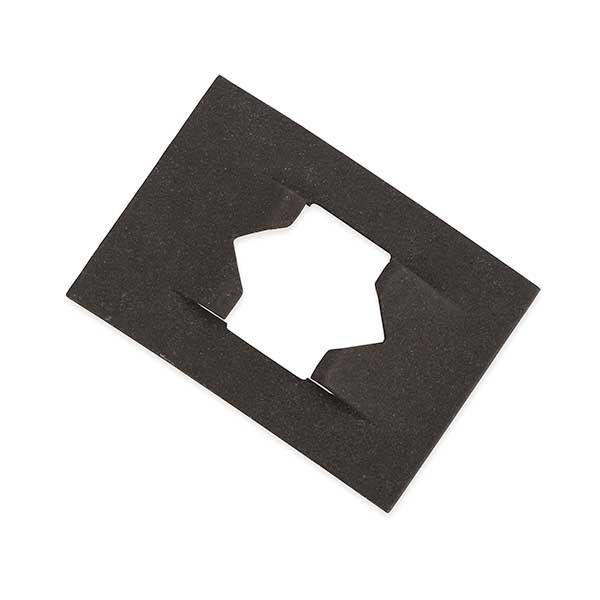

Rectangular Push-ons are removable shaft retainers that press over studs or shafts to become an integral part of an axial application. They offer a different exterior footprint and can be removed on a D-shaped stud by twisting the part 90 degrees.
Unit of Measure

Specifications

Material Thickness (Decimal)

 N/A 0.017 in

Stud Diameter

 N/A M4 5/32 in

Part Length

 N/A 0.56 in

Part Width

 N/A 0.380 in

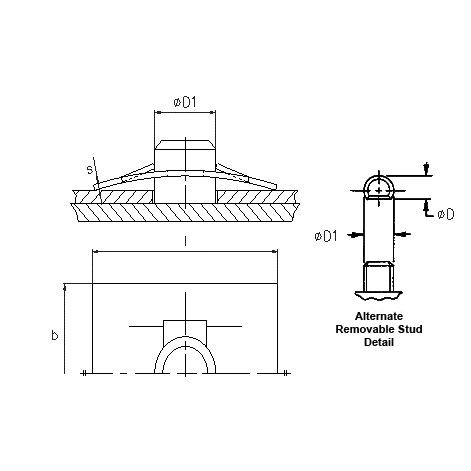

Alternate Stud Diameter

 N/A 0.125 in

Features and Benefits

Features and Benefits

 N/A Insertion and retention efforts depend on the material and material thickness of the part, the size of the spring fingers and stud material.
  • Provides maximum holding power which eliminates warranty issues caused by vibration loosening
  • No special tools required
  • the one-piece design eliminates multiple small parts and lessens inventory storage space
  • low profile design allows parts to be used in small mechanical and electrical components.
