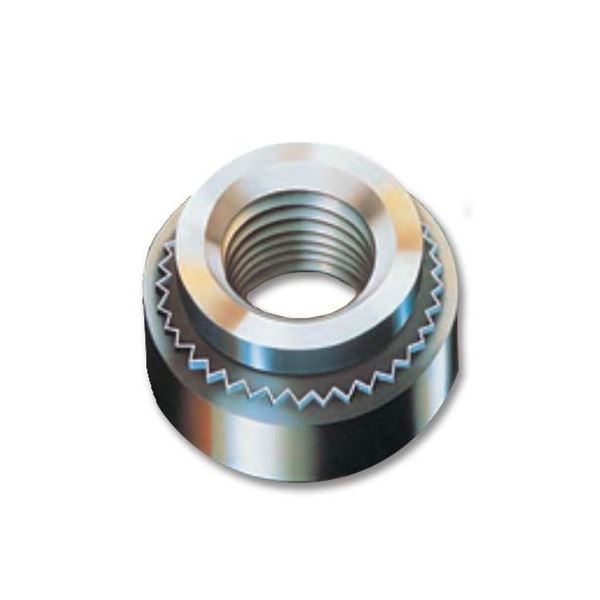

Aluminum Self-Clinching Nuts provide strong load-bearing threads. All Self-Clinching Nuts fit standard hole sizes and are dimensionally identical to industry standards. All self-clinching fasteners install into a round hole, which may be punched or drilled in ductile materials. They provide a permanently attached fastener, which becomes an integral part of the panel or frame and eliminates the problems associated with loose hardware. Self-Clinching fasteners provide added value by speeding initial assembly as well as servicing in the field, keeping costs to a minimum.
Unit of Measure

Specifications

Thread Size

N/A #4-40

Dimension B

N/A 0.250 in

Dimension C

N/A 0.090 in

Maximum Dimension A

N/A 0.187 in

Maximum Dimension D

N/A 0.038 in

Minimum Panel Thickness

N/A 0.04 in

Hole Inside Diameter

N/A 0.1875 in

Minimum Center of Hole to Edge of Panel

N/A 0.22 in

Material

N/A Aluminum

Features and Benefits

Features and Benefits

N/A Self-clinching fasteners are pressed into holes in sheet metal by applying a steady squeezing force. This results in the cold-flow of sheet material, which is displaced by the knurl, into the undercut area on the shank of the fastener. Once fully embedded, the knurled area prevents torque-out during tightening of mating part.
