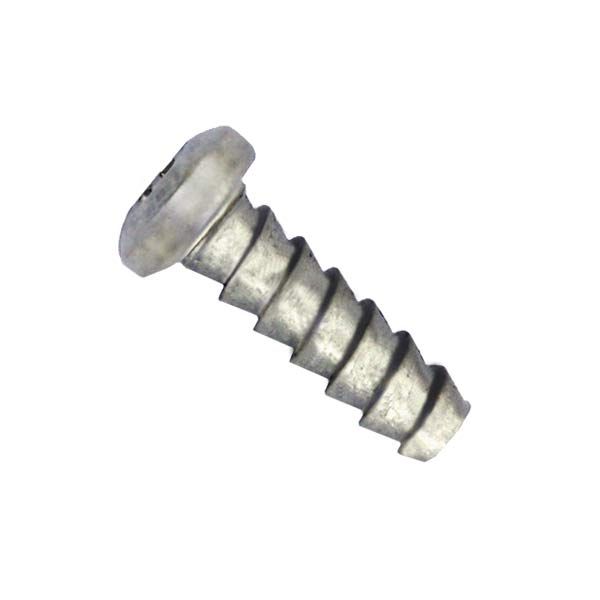

The unique thread profile of Pushtite® fasteners allows these thread forming screws to be simply pressed into place, virtually eliminating strip-out during initial assembly and providing high pull-out strength. Their tri-roundular shape minimizes stress on the boss. They are available in diameters ranging from M0.82 to M8.51 (#000 to 5/16").
Unit of Measure

Specifications

Head Type

 N/A Tri-Roundular

Diameter

 N/A M0.82 to M8.51 (#000 to 5/16 in.)

Material

 N/A Steel

Features and Benefits

Features and Benefits

 N/A
  • Can be removed and reinserted or made tamper resistant if needed
  • Available with or without drive system
  • Can be gang-driven, which can cut costs
  • Allows displaced air to escape during insertion to prevent pneumatic failure of boss
  • Presses into place
  • Resists pull-out
  • Reduces strip-out
  • Speeds assembly operations
  • Reduces boss failure
These parts are available in all Standard Cold-Headed materials.
