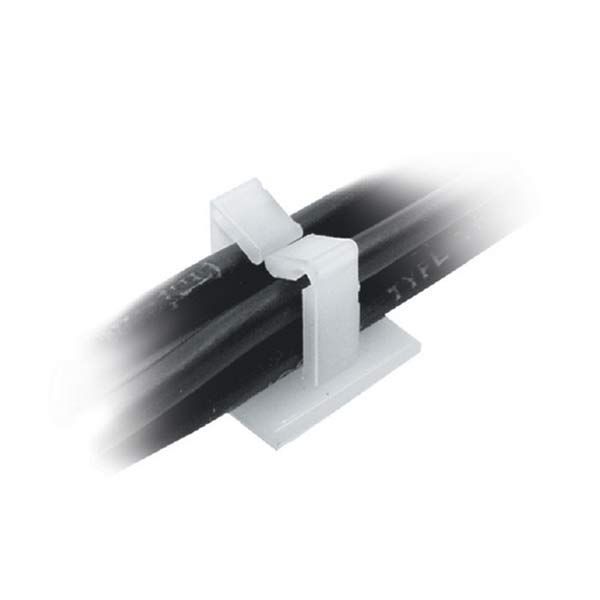

These Short Cable Clips with an Arrow head Prong are a perfect choice for low-profile applications where cables must have freedom of movement. The arrowhead prong snap-locks the saddle into a 0.138" diameter hole in a 0.063" panel, and allows the saddle to rotate in its mounting hole. This reduces strain on moving cables. Commonly called, "Wire Saddles," these cable clips are ideal for routing wires or fiber optic cable, providing easy top-load insertion and protection from abrasion.
Unit of Measure

Specifications

Material

 N/A Nylon 6/6

Mounting Hole Diameter

 N/A 0.138 in3.5 mm

Footprint Size

 N/A 0.16 x 0.43 in4.0 x 10.8 mm

Flammability Rating

 N/A 94V-0 94V-2

Overall Height

 N/A 0.36 in9.10 mm

Wire Capacity

 N/A 0.32 x 0.16 in8.1 x 3.9 mm

Small Outside Diameter

 N/A 0.299 in7.6 mm

Color

 N/A Natural

Applications

Applications

 N/A Fiber Optics
Electronics
Computers
Telecommunications

Features and Benefits

Features and Benefits

 N/A
  • Free-to-rotate mounting base.
  • Two material choices: UL 94V-2, or V-O.
  • Little stress on fiber when inserted.
  • Low profile applications.
  • Routes wires and cables.
  • Protects wires and cables from abrasion.
