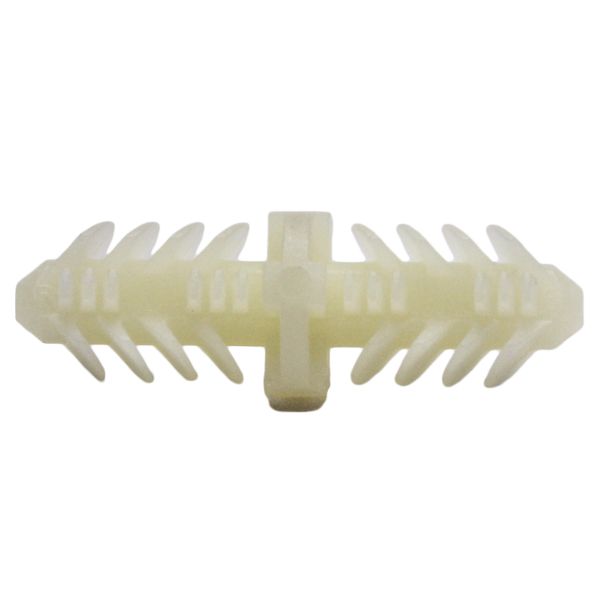

Double-Ended Tree Clips use X-mas tree push mount bases on both ends to secure 2 panels. These clips are available with round, conical or blunt ends to make these nylon barbed rivets easy to install.
Unit of Measure

Specifications

Type

 N/A Dart

Material

 N/A Nylon

Color

 N/A Natural

Maximum Head Thickness

 N/A 0.110 in

Minimum Head Thickness

 N/A 0.110 in

Maximum Hole Diameter

 N/A 0.250 in

Minimum Hole Diameter

 N/A 0.250 in0.270 mm

Minimum Panel Size A

 N/A 0.020 in

Maximum Panel Size C

 N/A 0.270 in

Minimum Panel Size C

 N/A 0.020 in

Both Ends Point Style

 N/A Blunt

Maximum Prong Length A

 N/A 0.450 in

Minimum Prong Length A

 N/A 0.450 in

Maximum Prong Size C

 N/A 0.450 in

Minimum Prong Size C

 N/A 0.450 in

Features and Benefits

Features and Benefits

 N/A One end of the clip is pressed into a hole in the primary panel. Assembly is completed by pressing a second panel onto the projecting ribbed shank.
