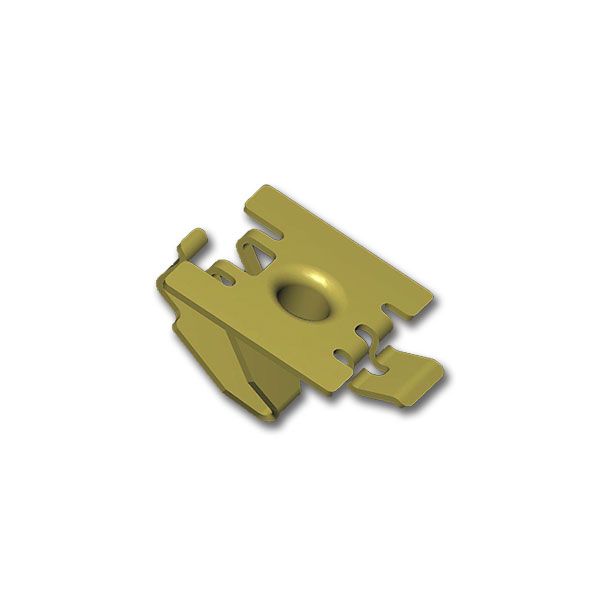

Hydro-Formed Tube Nuts are multi-thread mid panel fasteners designed specifically for hydro-formed tubing applications. They are especially useful where hole tolerance tends to vary. Hydro-Formed Tube Nuts are front-mounting with low insertion force.
Unit of Measure
Specifications
Panel Thickness |
N/A 0.70 to 1.60 in |
Width |
N/A 17 mm |
Screw Size |
N/A M6 x 1.00 |
Length L |
N/A 18 mm |
Height (H) |
N/A 14.3 mm |
Panel Hole Size P |
N/A 20.00 x 12.65 mm |
Features and Benefits
Features and Benefits |
N/A Hydro-Formed Tube Nuts dramatically reduce installation efforts to an impressive 10lbs maximum, without sacrificing strength or pull-out forces. During bolt installation, the lower leg of the fastener is designed to flex. This provides a clamping load to the bottom of the panel and helps ensure a rattle-free, secure assembly. |
