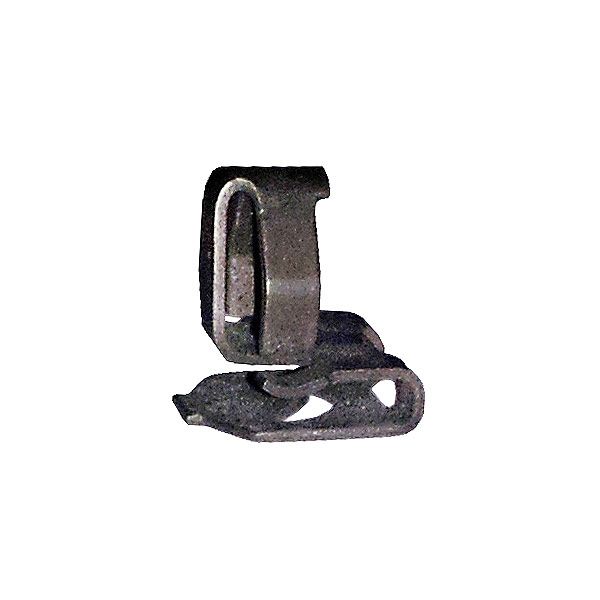

Right Angle Trim Clips are excellent general-purpose fasteners ideally suited for trim strips, access plates or any light application where removability is essential. Designed for use over panel edges with parallel attachments, they easily mate the structural panel with a push-to-snap-in force. Insertion and pull-out forces vary by mating panel hole configuration, panel thickness and finish.
Unit of Measure

Specifications

Material

 N/A High Carbon Spring Steel

Panel 1 Thickness

 N/A 0.055 to 0.065 in

Panel 1 Throat

 N/A 0.220 to 0.200 in

Panel 2 Thickness

 N/A 0.041 to 0.031 in

Features and Benefits

Features and Benefits

 N/A Advantages of Right Angle Trim Clips:
  • Can be mounted on panel at 90-degree angle for parallel assembly
  • Perfect for blind side assembly
  • Removable, reusable and self-retaining
  • Provide unblemished exposed panel surfaces
  • Self-equalizing retaining legs form dart-type configuration that ensures a snug, rattle-free installation
