Quick Release, 1/4-Turn Fasteners from Camloc® provide a vibration resistant joining solution for quick and repetitive attachment and removal of panels with minimum effort owing to their quick release 1/4-turn fastening mechanisms. The 99F Series of Quarter-Turn Fasteners features:
  • Maximum tensile strength at 700 N, working load of 480 N
  • Increased grip range
  • Externally threaded receptacles for use in castings or on panels with a retaining nut
  • Encapsulated design, splash-proof
Unit of Measure

Specifications

Material

 N/A Zinc Die Casting

Maximum Tensile Strength

 N/A 700 N

Working Load

 N/A 480 N

Temperature

 N/A 100 ºC

Finish

Finish

 N/A Zinc plated

Features and Benefits

Features and Benefits

 N/A
  • Locking and unlocking the fastener only requires a quarter turn
  • Fasteners can be locked and unlocked in a matter of seconds - saving time and reducing costs.
  • Vibration resistant - performs well in even the most intensive applications.
  • Camloc® Quick Release Fasteners are safe and easy to use.
  • Comprehensive range of fastener styles available in many sizes.
To select your 99F Series 1/4-Turn Fastener:

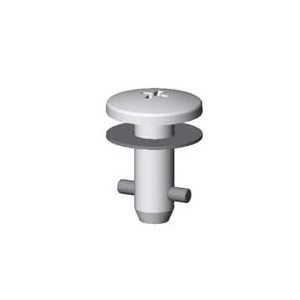

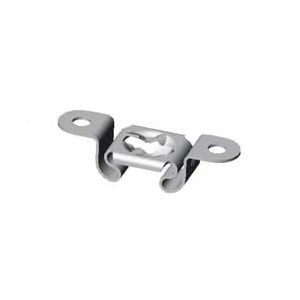

  1. Choose stud assembly and receptacle
  2. Select hex nut for receptacle, if required
  3. Select stud retaining washer
    4. Using the formula from the images labeled Determine the Stud Length Number and the Stud Length Table that corresponds to the type of receptacle you choose, select the stud length number from Total Thickness G

Additional Information

Additional Information

 N/A The 1/4-Turn 99F Series offers a wide range of styles to fit your applications. Click on diagrams under the main picture at right for more details. For additional information, contact an EFC Representative.
