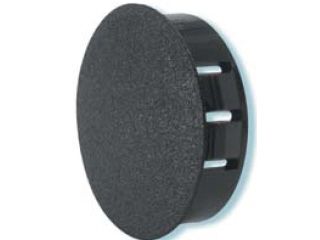

HEYCO® Standard Nylon Dome Type Hole Plugsclose unneeded chassis holes. Their convex matte finish head tapers to a thin edge. They are available in 29 sizes for use in 3/16" - 6" (4.70mm - 152.40mm) diameter holes.
Unit of Measure

Specifications

Brands

 N/A HEYCO®

Material

 N/A Nylon 6/6

Overall Height

 N/A 0.406 in10.30 mm

Maximum Panel Size

 N/A 0.125 in3.20 mm

Maximum Mounting Hole Size

 N/A 1.750 in44.50 mm

Minimum Mounting Hole Size

 N/A 1.750 in44.50 mm

Head Outside Diameter

 N/A 1.925 in

Color

 N/A Black

Note for Color

 N/A Other colors available through EFC International directly.
Material Temperature Index1 N/A 125 ºC

Flammability Rating

 N/A 94V-2

Industry Standards/Certifications

 N/A A Recognized under the Component Program of Underwriter™'s Laboratories File #E51579; Certified by the Canadian Standards Association File #LR-8919.

Features and Benefits

Features and Benefits

 N/A Locks firmly into chassis up to 1/4" (6.40 mm) thick. Locking fingers in fractional increments up to the maximum chassis thickness. Approximate Head Thickness: 0.063". Thickness may vary. Quick and easy installation.
  • 1 Maximum temperature on part not to exceed 105ºC.
