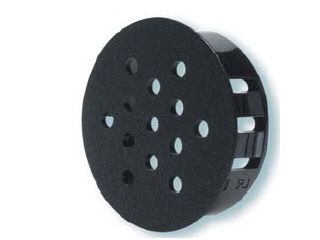

Thicker Panel Nylon Vent Plugs permit the passage of air for ventilation and heat dissipation in 1/4" thick panels, and hole diameters of 1/2" to 2".
Unit of Measure

Specifications

Brands

 N/A HEYCO®

Head Diameter

 N/A 0.578 in14.70 mm

Overall Height

 N/A 0.562 in14.30 mm

Maximum Panel Size

 N/A 0.250 in6.40 mm

Maximum Mounting Hole Diameter

 N/A 0.500 in12.70 mm

Minimum Mounting Hole Diameter

 N/A 0.500 in12.70 mm

Number of Holes

 N/A 4

Color

 N/A White

Material

 N/A Nylon 6/6
Temperature Index1 N/A 125 ºC

Flammability Rating

 N/A 94V-2

Industry Standards/Certifications

 N/A Recognized under the Component Program of Underwriter's„¢ Laboratories, File #E-15331. Certified by Canadian Standards Association, File #LR-8919

Features and Benefits

Features and Benefits

 N/A
  • Locks firmly into chassis up to 1/4" (6.40 mm) thick.
  • Locking Fingers in fractional increments up to the maximum chassis thickness.
  • Convex, matte finish head tapers to a thin edge.
  • Quick and easy installation with only fingertip pressure.
  • 1 Maximum temperature on part not to exceed 105ºC
