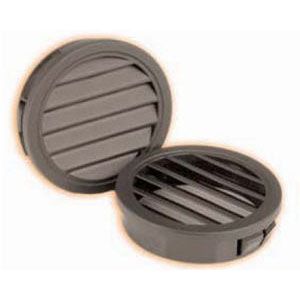

Louvered Hole Plugs permit the passage of air for ventilation but limits liquid infiltration. The plug locks firmly into a panel up to 0.250 in (6.40 mm) thick. It is suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels.
Unit of Measure
Specifications
Brands |
N/A HEYCO® |
Maximum Temperature on Part |
N/A 221 ºF105 ºC |
Head Diameter |
N/A 1.676 in42.40 mm |
Mounting Hole Diameter |
N/A 1.500 in38.10 mm |
Overall Height |
N/A 0.543 in13.80 mm |
Maximum Panel Size |
N/A 0.125 in3.20 mm |
Temperature Index |
N/A 257 ºF152 ºC |
Color |
N/A Black |
Material |
N/A Nylon 6/6 |
Withstand Force |
N/A 35 lb |
Weight |
N/A 2.45 lb |
Flammability Rating |
N/A 94V-2 |
