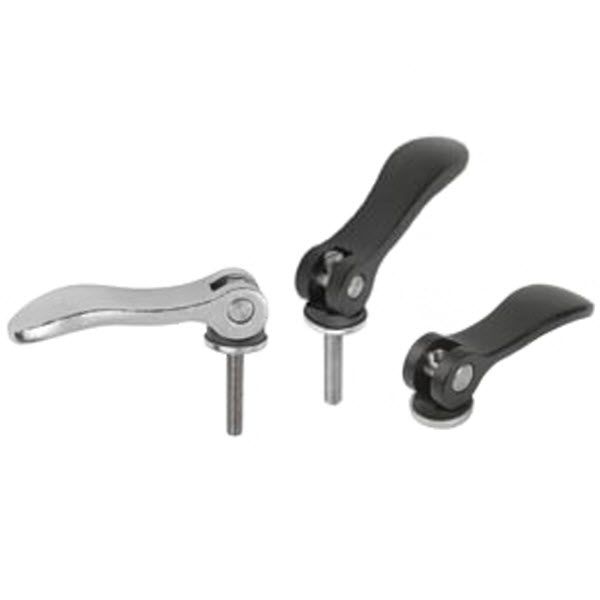

Cam Levers featured on this page are either internal threaded and are available in standard of adjustable.
Unit of Measure

Specifications

Type

 N/A Cam

Color

 N/A Black

Dimension B

 N/A 21.5 in

Dimension A

 N/A 70.4 mm

Dimension D1

 N/A 18 mm

Dimension H

 N/A 14.5 mm

Size

 N/A 1 in

Surface Finish Component

 N/A Steel

Dimension A1

 N/A 79.2 mm

Dimension D2

 N/A 9 mm

Dimension H1

 N/A 22 mm

Dimension B1

 N/A 15 mm

Clamping Force F

 N/A 4 kN

Hand Force

 N/A 120 N

Internal Thread D

 N/A 1/4-20

Throw Size S

 N/A 1.2 mm

Weight

 N/A 0.06 lb

Material

Material

 N/A Stainless Internal Threads
  • Handle- 1.4308 Electrolytic Polished Stainless Steel
  • Thrust Washer- Glass-Fiber Reinforced Plastic PA 6 GF 30, Black
  • Hinge Pin and Washer- 1.4305 Stainless Steel, Natural
Standard
  • Handle- Cast Aluminum EN AC-46200, Black powder-Coated
  • Thrust Washer- Glass-Fiber Reinforced Plastic PA 6 GF 30, Black
  • Hinge Pin- Stainless Steel 1.4305, Natural
  • Threaded Stud and Washer- Steel 5.8, Blue Chromated or Stainless Steel 1.4305, Natural
Adjustable Stainless
  • Handle- Stainless 1.4308 Electrolytic Polished
  • Thrust Washer- Glass-Fiber Reinforced Plastic PA 6 GF 30, Black
  • Hinge Pin, Threaded Stud, and Washer- Stainless Steel 1.4305, Natural
Adjustable
  • Handle- Cast Aluminum EN AC-46200, Black-powder Coated
  • Thrust Washer- Glass-Fiber Reinforced Plastic PA 6 GF 30, Black
  • Hinge Pin- Stainless Steel 1.4305, Natural
  • Threaded Stud and Washer- Steel 5.8, Blue Chromated or Stainless Steel 1.4305, Natural

Features and Benefits

Features and Benefits

 N/A STYLES:
  • Stainless Internal Threads
  • Standard
  • Adjustable Stainless
  • Adjustable
