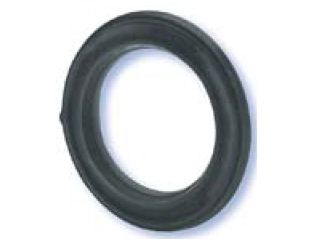

Liquid Tight Sealing Washers for Flexible Fittings are for use with the Liquid Tight Connectors listed in our Electrical catalog, and most electrical fittings. They are liquid tight, dust tight and oil tight at enclosures.
Unit of Measure
Specifications
Inside Diameter |
N/A 0.820 in20.80 mm |
Outside Diameter |
N/A 1.240 in31.50 mm |
Part Thickness |
N/A 0.125 in3.20 mm |
Trade Size |
N/A 1/2 in |
Trade Type |
N/A National Pipe Thread (NPT) |
Color |
N/A Black |
Material |
N/A Thermoplastic Elastomers (TPE) |
| Temperature Index1 | N/A 125 ºC |
Weight |
N/A 0.09 lb |
Flammability Rating |
N/A 94V-0 |
Features and Benefits
Features and Benefits |
N/A Suitable for wet locations requiring a separate gasket between the box and fitting. Also suitable for other panel or chassis sealing applications. Easy to install since washers seal off on the perimeter, not on the connector threads. Special double sealing ridges compensate for minor unevenness at enclosure. |
- 1 Maximum Temperature on the part shall not exceed 105 ºC.
