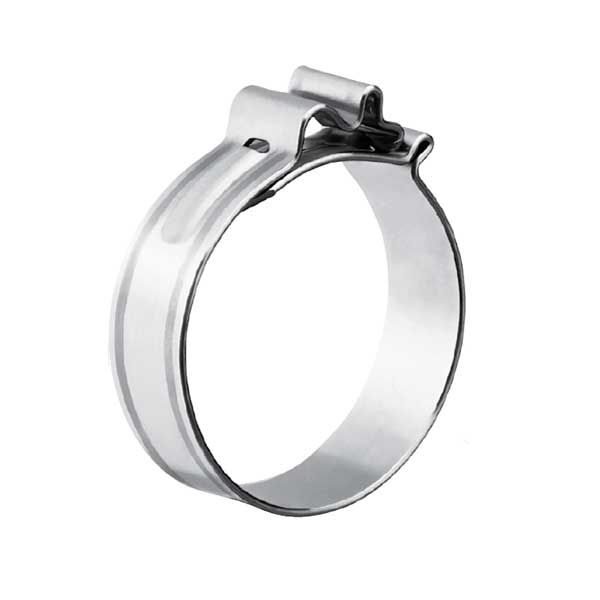

These hose clamps are one-piece connectors for hose/pipe systems whose low profile allows exact fitting even in very narrow assembly conditions. Developed for automobile original equipment, they can be used in all fields of industry. They are manufactured in a strip width range of 7, 8 and 9 mm.
Unit of Measure

Specifications

Band Width (Decimal)

 N/A 0.315 in8.00 mm

Finish

 N/A Plain

Maximum Clamp Size

 N/A 102.00 in102.00 mm

Material

 N/A 304 Stainless Steel

Color

 N/A Yellow

Maximum Hose Outside Diameter

 N/A 0.787 in20.00 mm

Minimum Hose Outside Diameter

 N/A 0.728 in18.50 mm

Minimum Corrosion Resistance

 N/A 240 hr. in Salt Spray Testing

Nominal Diameter (Decimal)

 N/A 18 mm

Material

Note for Material

 N/A DIN 1.4301

Applications

Applications

 N/A Automobile uses - hose fittings on air ducts such as e.g. suction or fuel vent pipes; fitting bellows on gaiters and steering sleeves; fastening of airbags Industrial uses - secure connection for washing machine hoses, hoses in irrigation systems or pneumatic lines.

Features and Benefits

Features and Benefits

 N/A Self-adjusting diameter, Bead for safe guidance, Rounded Edges protect hose, Color Coded strip for visual identification of the different nominal diameters. Single lock-in point.
