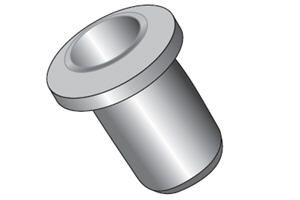

TAPERED FLANGED BUSHINGS have the advantage of being inexpensive, light weight, low friction, non-corrosive and of possessing excellent compressive and tensile strength. They are suitable as light-load bearings or bushings.
Unit of Measure
Specifications
Material |
N/A Various |
Overall Length |
N/A 0.732 in |
Inside Diameter |
N/A 0.197 in |
Stem Length |
N/A 0.357 in |
Flange Thickness |
N/A 0.075 in |
Flange Outside Diameter |
N/A 0.373 in |
Features and Benefits
Features and Benefits |
N/A
Used as locators, sleeves, liners or guides, Flanged Bushings insulate a component and prevent metal-to-metal contact. The flange portion acts as a stop when inserted into the component. The shank then insulates the shaft, bolt, stud, rivet or other insert from the mounting surface. These parts are available in a wide range of materials including:
|
