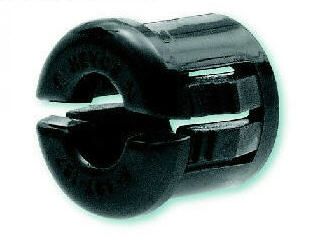

Standard Snub Bushing provide light strain relief and insulation. They are suitable for 1/8" to 1/4" (3.20 mm to 6.40 mm) diameter cable, tubing or hose.
Unit of Measure
Specifications
Head Diameter |
N/A 1.020 in25.80 mm |
Mounting Hole Diameter |
N/A 0.875 in22.00 mm |
Overall Height |
N/A 12.30 mm0.480 in |
Maximum Panel Thickness |
N/A 0.125 in3.2 mm |
Bundle Diameter |
N/A 0.875 in15.90 mm |
Material |
N/A Nylon 6/6 |
Flammability Rating |
N/A 94V-2 |
Weight |
N/A 2.5 lb |
| Color1 | N/A Black |
| Material Temperature Index2 | N/A 125 ºC |
Industry Standards/Certifications |
N/A A Recognized under the Component Program of Underwriters™ Laboratories File #E-15331 Certified by the Canadian Standards Association File #LR-8919. |
- 1 White and other colors available at extra charge (minimum quantities apply).
- 2 Maximum temperature on part not to exceed 105 ºC.
