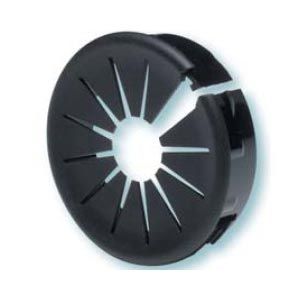

Open/Closed Universal Bushing have a split design which allows side entry and encirclement of preassembled harnesses, capillary tubes or other assemblies that have segments larger than the bushing ID. They are constructed from Nylon 6/6, and are available in 9 sizes for use in 1/2" to 1-1/2" (12.70 mm to 38.10 mm) diameter holes.
Unit of Measure
Specifications
Material |
N/A Nylon 6/6 |
Color |
N/A Black |
Note for Color |
N/A Please contact EFC International directly for color matching information. |
| Temperature Index1 | N/A 125 ºC |
Inside Diameter |
N/A 0.500 in12.70 mm |
Mounting Hole Size |
N/A 0.750 in19.00 mm |
Overall Height |
N/A 0.406 in10.30 mm |
Maximum Panel Thickness |
N/A 0.125 in3.2 mm |
Head Outside Diameter |
N/A 0.812 in20.60 mm |
Flammability Rating |
N/A 94V-2 |
Industry Standards/Certifications |
N/A Recognized under the Component Program of Underwriter's™ Laboratories, File #E-15331. Certified by the Canadian Standards Association, File #LR-8919. |
Features and Benefits
Features and Benefits |
N/A Parts can be assembled into holes that already contain cables or tubing Only fingertip pressure required to snap-lock the bushing into its mounting hole Locking fingers in fractional increments up to the maximum panel thickness Flexible shutters adjust to accommodate and support any shape from 0.125" to a maximum diameter of 1.062" Absorbs vibration, cushions and insulates cables, tubing, hoses or shafts with limited internal clearance. |
- 1 Maximum temperature on part not to exceed 105ºC
