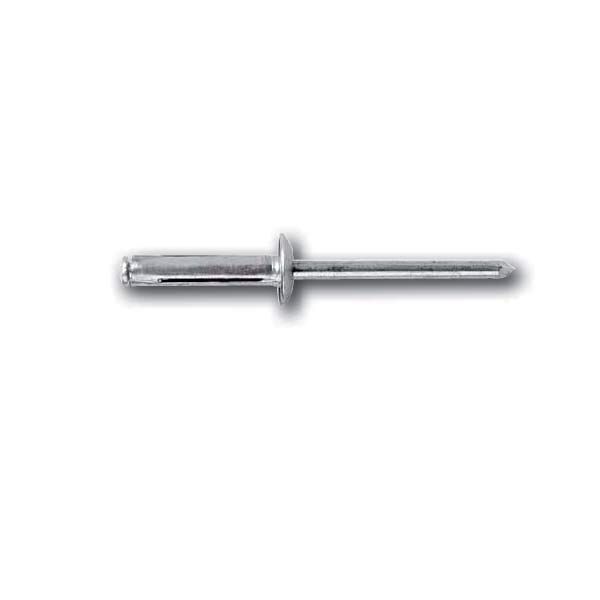

These Klamp-tite Protruding Head Rivets have an external locking feature that requires a special nose tip. This rivet provides good vibration resistance and exceptional clamp-up strength for a wide grip range. Three-leg formation compensates for oversized or irregular holes. There are two styles available-one with protruding head, and one with countersunk head. If your application requires a style or size not available on this page, please contact EFC International for more information.
Unit of Measure

Specifications

Hole Size

 N/A 0.252 to 0.262 in

Nominal Rivet Diameter

 N/A 1/4 in

Head Diameter A

 N/A 0.560 in

Rivet Grip Range

 N/A 0.060 to 0.250 in

Maximum Rivet Length L

 N/A 0.925 in

Maximum Blind Length E

 N/A 1.300

Sleeve Diameter D

 N/A 0.242 in

Stem Diameter S

 N/A 0.136 in

Head Thickness B

 N/A 0.113 in

Material

 N/A Aluminum

Features and Benefits

Features and Benefits

 N/A
  • High Shear and Tensile Strength - The hardened mandrel in these Rivets provides high tensile strength and shear values.
  • High Clamp-up - This Rivet will draw sheets firmly together, even when separated by as much as 3/16".
  • Visible Lock - This Rivet will withstand severe vibration without loss of the mandrel's plug section.
