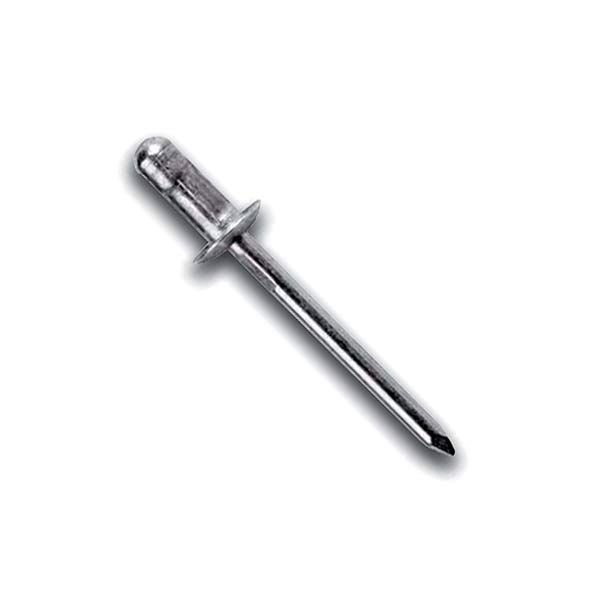

The original Multi-grip Blind Breakstem, the Avex® Rivet offers positive stem retention, complete hole fill and wide grip range with high levels of quality and reliability. These breakstem rivets can be used to fasten metal to metal, plastic to plastic, metal to plastic and metal rear sheet. Typical assembly applications include automotive, domestic appliances, electronics, light industrial and more. This product group displays the low profile, Dome headform.
Unit of Measure

Specifications

Brands

 N/A Avex®

Head Type

 N/A Low Profile

Grip Range

 N/A 0.500 to 0.781 in

Hole Size

 N/A 0.194 to 0.201 in

Nominal Rivet Diameter

 N/A 3/16 in

Mandrel Material

 N/A Stainless Steel

Rivet Material

 N/A Aluminum

Maximum Length M

 N/A 1.09 in

Maximum Diameter E

 N/A 0.112 in

Maximum Head Height D

 N/A 0.071 in

Nominal Head Diameter B

 N/A 0.387 in

Rivet Diameter A

 N/A 0.185 to 0.190 in

Material

 N/A Aluminum Alloy

Stem Material

 N/A Stainless steel Steel

Rivet Finish

 N/A Plain

Mandrel Finish

 N/A Zinc Yellow Dichromatic

Features and Benefits

Features and Benefits

 N/A
  • Wide Grip Range - One rivet can be used in multiple material thicknesses. This reduces inventories and helps eliminate operator error.
  • Mechanically Locked Stem - Stem is locked in shell, eliminating the risk of mandrel head vibrating loose. Provides weather resistant joint.
  • Complete Hole Fill - The bulbing formation will fill slightly oversized or irregular holes which increases strength and vibration resistance.

Note

Note

 N/A A variety of finishes are available for this product. Please contact an EFC representative for more information.
