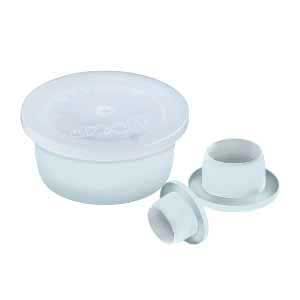

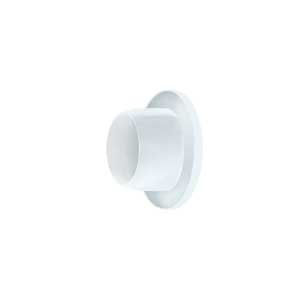

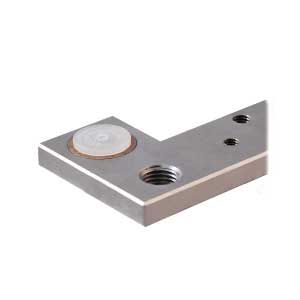

Barrel Plugs with a Flange fit a wide variety of threaded and non-threaded sizes and styles of general purpose plugs. They allow maximum flexibility and are easy to apply and remove. A convex body design holds them firmly in place.
Unit of Measure

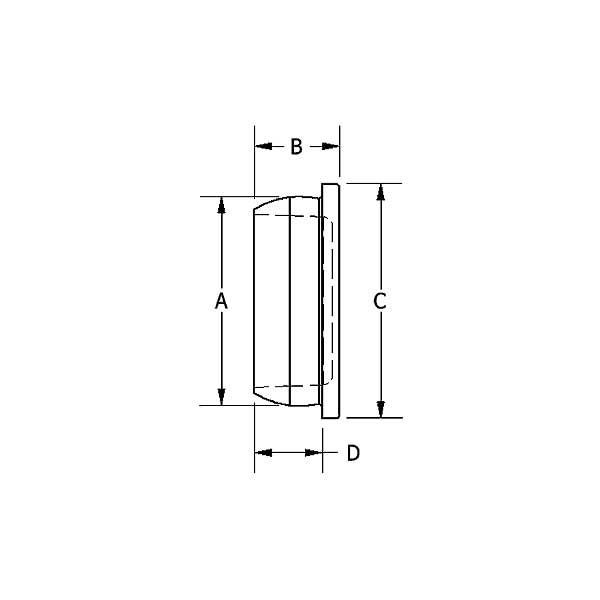

Specifications
Length |
N/A 0.177 in4.5 mm |
Overall Length |
N/A 0.256 in6.5 mm |
To Fit Standard Thread Size |
N/A 3/8-24 |
To Fit British Standard Pipe (BSP) |
N/A 1/8 |
To Fit National Pipe Thread (NPT) |
N/A 1/8 in |
Flange Outside Diameter |
N/A 0.551 in14.0 mm |
Large Diameter |
N/A 0.362 in9.2 mm |
Metric Fine Threads |
N/A M 10 x 1 |
Material |
N/A Low-Density Polyethylene (LDPE) |
Color |
N/A Natural |
Features and Benefits
Features and Benefits |
N/A
The BPF Series Plugs are sized to fit 1/16 through 2 NPT or 1/4-20 Through 2-1/2-12 UN or 1/16 through 1-3/4 BSP or M3 through M90 threads/holes. They are molded in a natural colored polyethylene plastic.
|
